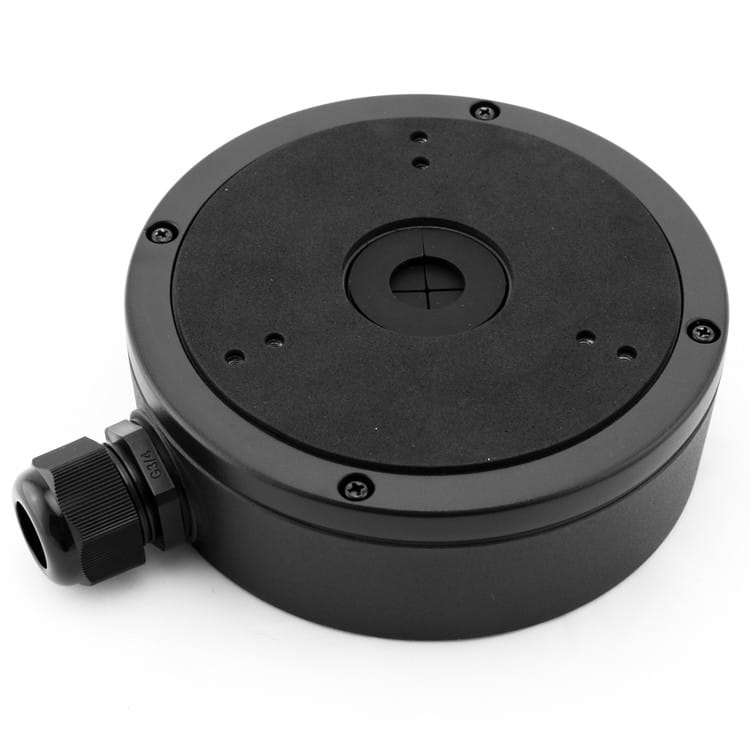

DS-1280ZJ-M(Black)

DS-1280ZJ-M(Black)  Junction Box      Features   Aluminum alloy with surface spray treatment   Side outlet, and bottom outlet   Interchangeable bottom waterproof cover, and side gland nut   Applies to both indoor conditions, and outdoor conditions  Dimension  53  .4  mm  (  2  .1  " )  184  .8  mm  (  7  .28  " )  Ø 90 mm (3.54" )  Ø 157 mm (6.18" )  Ø 112.4 mm (4.43" )  4-Ø 4.5 mm  (0.18" )      Available Model  DS-1280ZJ-M(Black)  Parameter  Model    Parameters  DS-1280ZJ-M(Black)  Junction Box  Appearance Black  Material Aluminum Alloy  Dimension Ø 157 mm x 184.8 mm x 53.4 mm (Ø 6.18" x 7.28" x 2.1")  Weight 621 g (1.37 lb.)  Notes   The junction box should be installed on the flat surface.   Waterproof rubber is necessary for outdoor application.   The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the  mount.   The maximum load capacity of the junction box is 4.5 kg (9.9 lb.)....

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-1280ZJ-M(Black)
Junction Box


Features
 Aluminum alloy with surface spray treatment
 Side outlet, and bottom outlet
 Interchangeable bottom waterproof cover, and side gland nut
 Applies to both indoor conditions, and outdoor conditions
Dimension
53
.4
mm
(
2
.1
" )
184
.8
mm
(
7
.28
" )
Ø 90 mm (3.54" )
Ø 157 mm (6.18" )
Ø 112.4 mm (4.43" )
4-Ø 4.5 mm
(0.18" )


Available Model
DS-1280ZJ-M(Black)
Parameter
Model

Parameters
DS-1280ZJ-M(Black)
Junction Box
Appearance Black
Material Aluminum Alloy
Dimension Ø 157 mm x 184.8 mm x 53.4 mm (Ø 6.18" x 7.28" x 2.1")
Weight 621 g (1.37 lb.)
Notes
 The junction box should be installed on the flat surface.
 Waterproof rubber is necessary for outdoor application.
 The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the
mount.
 The maximum load capacity of the junction box is 4.5 kg (9.9 lb.).
