DS-1280ZJ-DM45

DS-1280ZJ-DM45  Junction Box      Features   Aluminum alloy with surface spray treatment   Side inlet, and bottom inlet   Interchangeable bottom waterproof cover, and side gland nut   Applies to both indoor conditions, and outdoor conditions  Dimension  167  .9  mm  (6  .61  " )  Ø 130 mm (6.61" )  46 mm (1.81" )  83  .5  mm  (3  .29  " )  4-Ø 4.5 mm  (0.18" )  Ø 140 mm (5.51" )  40  mm  (1  .57  " )  3-M4  Depth: 8 mm  (0.31" )      Available Model  DS-1280ZJ-DM45  Parameter  Model    Parameters  DS-1280ZJ-DM45  Junction Box  Appearance Hikvision White  Material Aluminum Alloy  Dimension Φ140 mm x 40 mm (5.51" x 1.57")  Weight Approx.: 237 g (0.52 lb.)  Notes   The junction box should be installed on the flat surface.   The waterproof rubber is necessary for the outdoor application.   The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the  junction box.   The maximum load capacity of the junction box is 3 kg (6.6 lb.).      0100001080511...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-1280ZJ-DM45

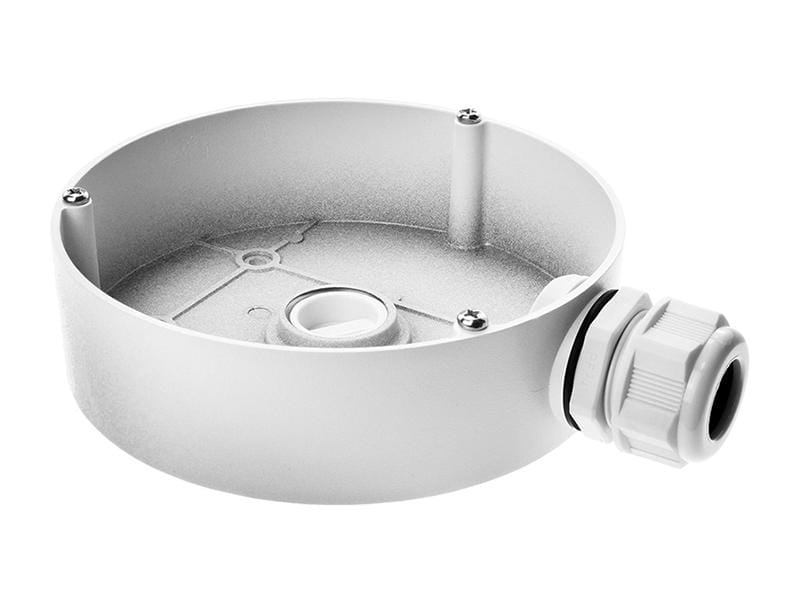

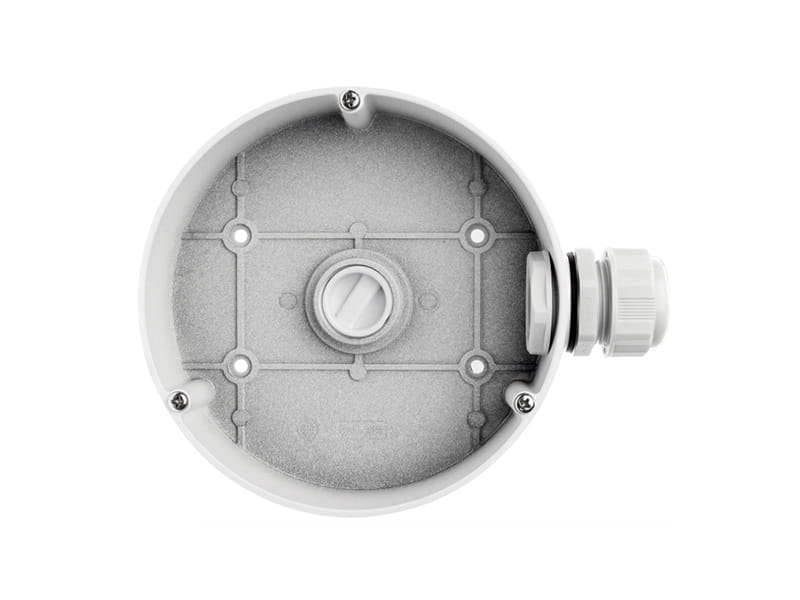

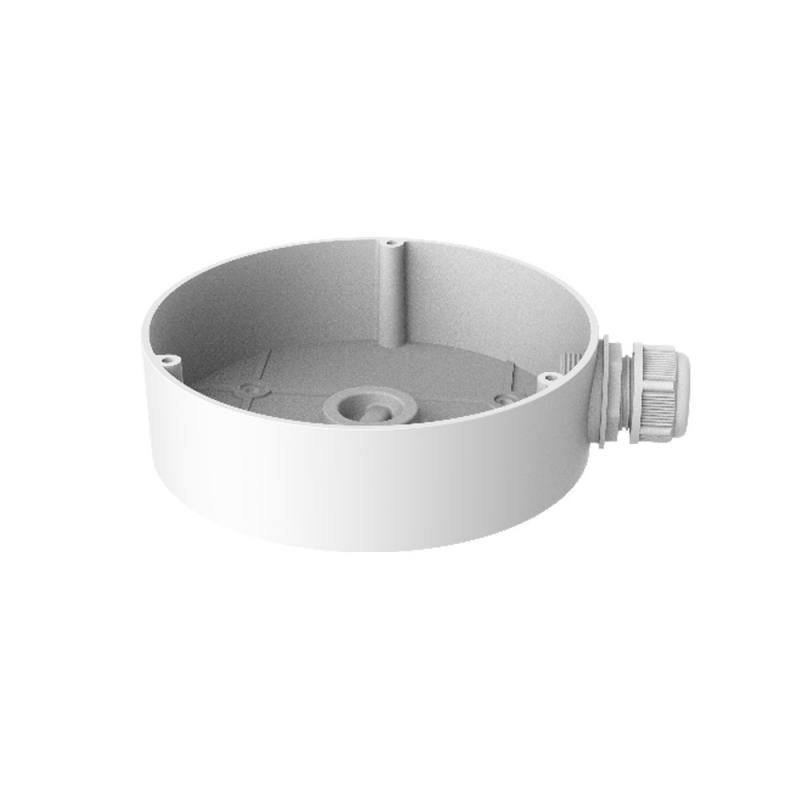

Junction Box


Features
 Aluminum alloy with surface spray treatment
 Side inlet, and bottom inlet
 Interchangeable bottom waterproof cover, and side gland nut
 Applies to both indoor conditions, and outdoor conditions
Dimension
167
.9
mm
(6
.61
" )
Ø 130 mm (6.61" )
46 mm (1.81" )
83
.5
mm
(3
.29
" )
4-Ø 4.5 mm
(0.18" )
Ø 140 mm (5.51" )
40
mm
(1
.57
" )
3-M4
Depth: 8 mm
(0.31" )


Available Model
DS-1280ZJ-DM45
Parameter
Model

Parameters
DS-1280ZJ-DM45
Junction Box
Appearance Hikvision White
Material Aluminum Alloy
Dimension Φ140 mm x 40 mm (5.51" x 1.57")
Weight Approx.: 237 g (0.52 lb.)
Notes
 The junction box should be installed on the flat surface.
 The waterproof rubber is necessary for the outdoor application.
 The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the
junction box.
 The maximum load capacity of the junction box is 3 kg (6.6 lb.).


0100001080511
