DS-1280ZJ-DM21(Black)
Description
DS-1280ZJ-DM21 Wall Mounting Bracket for Dome Camera Features: Aluminum alloy material with surface spray treatment Waterproof design Dimension: Order Model: DS-1280ZJ-DM21 Parameter: Model Parameters DS-1280ZJ-DM21 Wall Mounting Bracket for Dome Camera Appearance Hikvision White Material Aluminum Alloy Dimension Φ137x42mm Weight 250g Notice: The bracket should be installed on flat wall Waterproof rubber is necessary for outdoor application The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 4.5KG Installation Step: ① Choose the appropriate wall to install the bracket and thread the cable ② Separate basement and dome of camera ③ Fix the basement of camera to bracket and thread the cable ④ Adjust the angle of view, fix the lower case, and complete the installation Note: The actual dome camera may vary from the picture above. n137 162 42 n...
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:

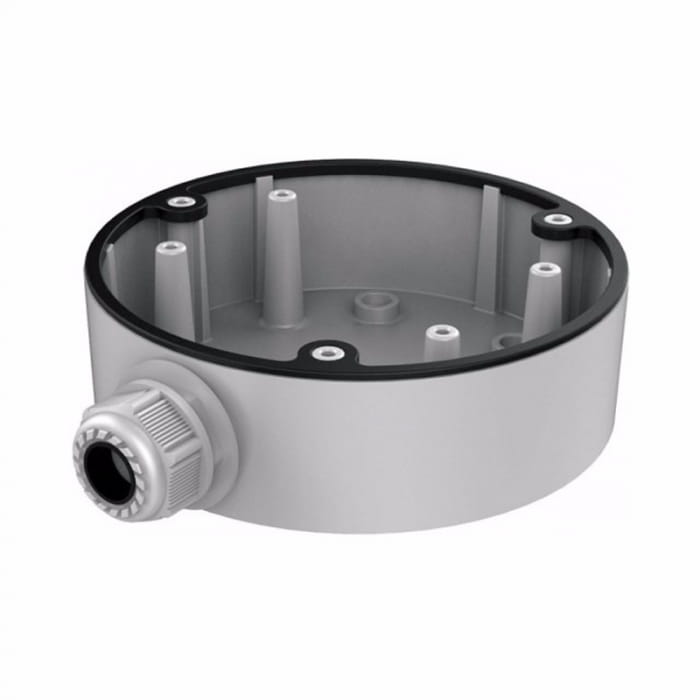

DS-1280ZJ-DM21
Wall Mounting Bracket for
Dome Camera
Features:
Aluminum alloy material with surface spray
treatment
Waterproof design
Dimension:
Order Model:
DS-1280ZJ-DM21
Parameter:
Model
Parameters
DS-1280ZJ-DM21
Wall Mounting Bracket for
Dome Camera
Appearance Hikvision White
Material Aluminum Alloy
Dimension Φ137x42mm
Weight 250g
Notice:
The bracket should be installed on flat wall
Waterproof rubber is necessary for outdoor application
The wall must be capable of supporting over 3 times as
much as the total weight of the camera and the mount.
The maximum load capacity of the bracket is 4.5KG
Installation Step:
① Choose the appropriate
wall to install the bracket
and thread the cable
② Separate basement
and dome of camera
③ Fix the basement of
camera to bracket and
thread the cable
④ Adjust the angle of view, fix
the lower case, and complete
the installation
Note: The actual dome camera may vary from the picture above.
n137
162
42
n116
83.5
46
46
83.5
7-M4 D10
