DS-1276ZJ
Description
DS-1276ZJ Corner Mount Bracket Features: For corner mounting Aluminum alloy is used for mounting plate Add the field view angle of camera Dimension: Order Model: DS-1276ZJ Parameter: Model Parameter DS-1276ZJ Corner Mount Bracket Appearance Hikvision White Range of Application Adopted with some wall mount bracket Material Aluminum Alloy Dimension 126x105x250mm Weight 1950g Notice: The site of screw hole should be noticed when using with wall mount bracket The bracket should be installed on flat wall Load capacity of pole should be more than 3 times the weight of camera and bracket Load capacity of clamp is 10KG Installation Step: ① Choose appropriate wall and install the bracket with expansion bolt ② Screw up and fix the bracket firmly ③ Complete the bracket installation and wiring for camera adoption The bracket can be used with some wall mounting bracket, which is as followed: ...
Warning! Product withdrawn from production!
Replacement product: DS-1276ZJ-SUS
Replacement product code: 302701678
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:

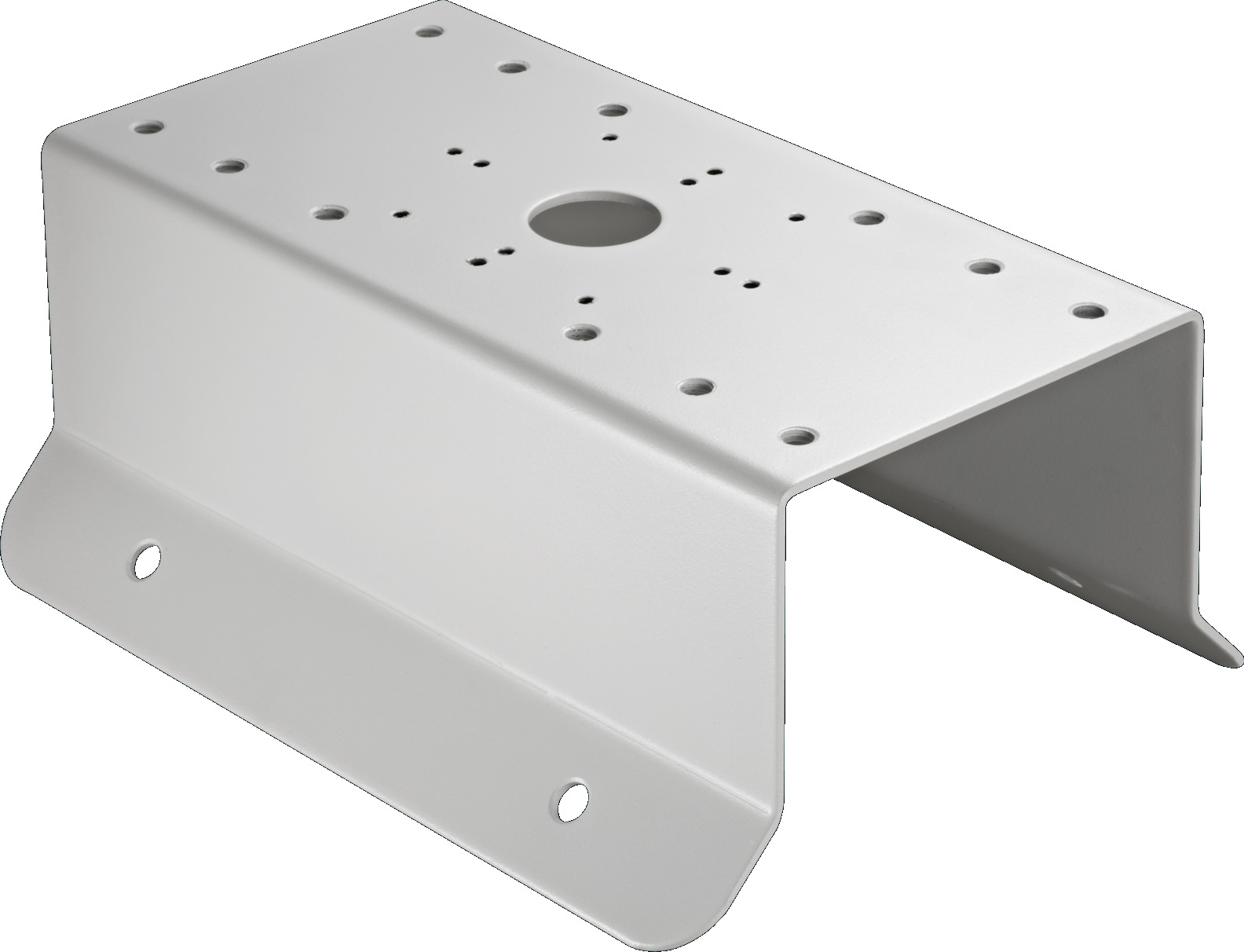

DS-1276ZJ
Corner Mount Bracket
Features:
For corner mounting
Aluminum alloy is used for mounting plate
Add the field view angle of camera
Dimension:
Order Model:
DS-1276ZJ
Parameter:
Model
Parameter
DS-1276ZJ
Corner Mount Bracket
Appearance Hikvision White
Range of
Application
Adopted with some wall mount bracket
Material Aluminum Alloy
Dimension 126x105x250mm
Weight 1950g
Notice:
The site of screw hole should be noticed when using with
wall mount bracket
The bracket should be installed on flat wall
Load capacity of pole should be more than 3 times the
weight of camera and bracket
Load capacity of clamp is 10KG
Installation Step:
① Choose appropriate wall and install the
bracket with expansion bolt
② Screw up and fix the bracket firmly ③ Complete the bracket installation and
wiring for camera adoption
The bracket can be used with some wall mounting bracket, which is as followed:

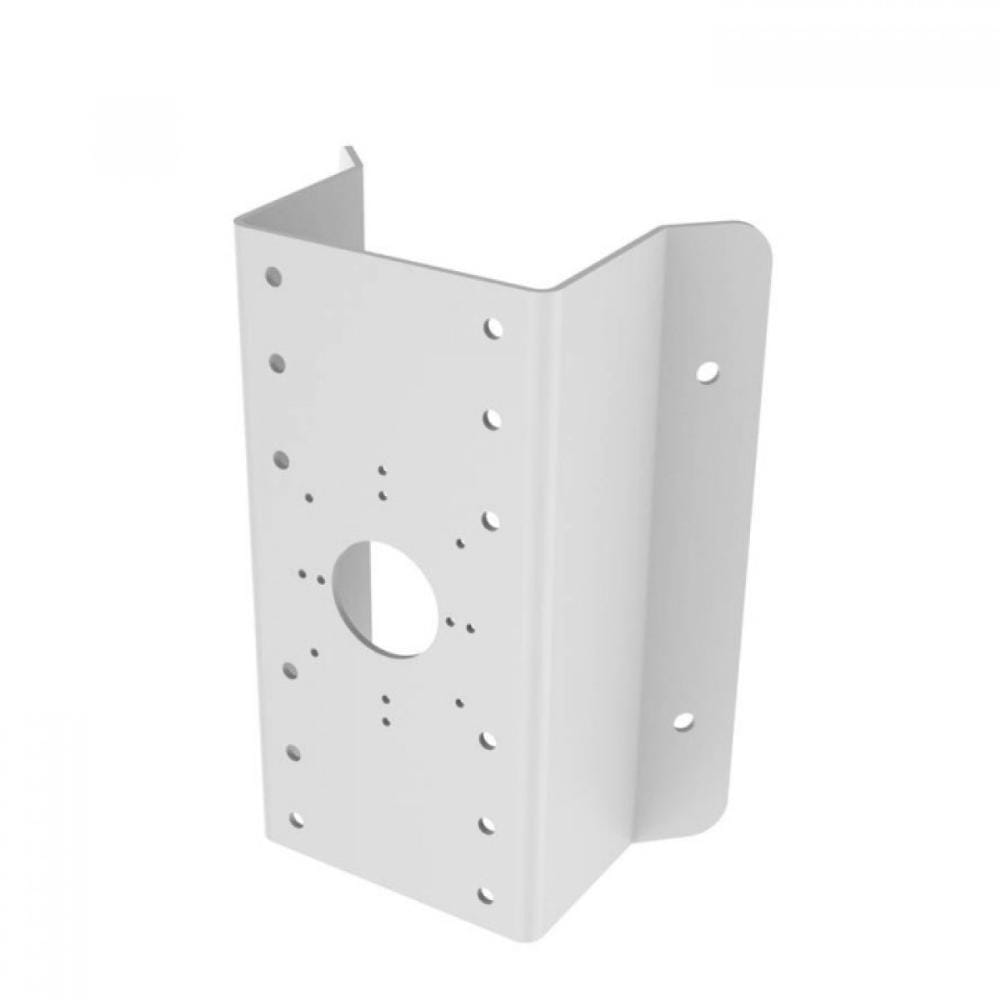

Note: The actual bracket may vary from the picture above.
