DS-1274ZJ-DM28

DS-1274ZJ-DM28  Corner Mounting Bracket for Dome Camera    Feature  ⚫ Aluminum alloy and plastics material with surface spray treatment  ⚫ Bottom outlet and side outlet  ⚫ Adjustable installation angle  Dimension  235.6 mm  (9.27")  2  0  0  .  6    m  m    (  7  .  8  9  "  )  9  6  .  1    m  m    (  3  .  7  8  "  )      Available Model  DS-1274ZJ-DM28  Parameter  Model    Parameters  DS-1274ZJ-DM28  Corner Mounting Bracket for Dome Camera  Appearance Hikvision White  Material Aluminum Alloy and Plastics  Dimension 235.6 mm x 200.6 mm x 96.1 mm (9.27" x 7.89" x 3.78")  Weight 570 g (4.7 lb.)  Note  ⚫ The bracket should be installed on the indoor corner.  ⚫ The corner must be capable of supporting at least 3 times as much as the total weight of the dome camera and the  bracket.  ⚫ The bracket’s maximum load capacity is 3 KG (6.6 lb.)....

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-1274ZJ-DM28

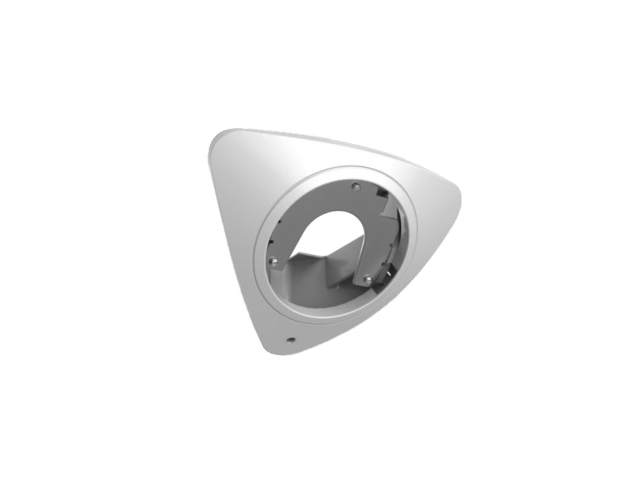

Corner Mounting Bracket for Dome Camera

Feature
⚫ Aluminum alloy and plastics material with surface spray treatment
⚫ Bottom outlet and side outlet
⚫ Adjustable installation angle
Dimension
235.6 mm
(9.27")
2
0
0
.
6

m
m

(
7
.
8
9
"
)
9
6
.
1

m
m

(
3
.
7
8
"
)


Available Model
DS-1274ZJ-DM28
Parameter
Model

Parameters
DS-1274ZJ-DM28
Corner Mounting Bracket for Dome Camera
Appearance Hikvision White
Material Aluminum Alloy and Plastics
Dimension 235.6 mm x 200.6 mm x 96.1 mm (9.27" x 7.89" x 3.78")
Weight 570 g (4.7 lb.)
Note
⚫ The bracket should be installed on the indoor corner.
⚫ The corner must be capable of supporting at least 3 times as much as the total weight of the dome camera and the
bracket.
⚫ The bracket’s maximum load capacity is 3 KG (6.6 lb.).
