DS-1273ZJ-DM32

DS-1273ZJ-DM32  Wall Mounting Bracket for Dome Camera      Features   Aluminum alloy material with surface spray treatment   The lower bowl facilitates the installation   Water proof design  Dimension  83.5 mm (3.3")  83  .5  mm  (3.3")  46 mm   (1.8")  85.7 mm  (3.4")  183  .5  mm  (7.2")  158  mm  (6.2")  6x M4  Depth:8 mm (0.3")  232 mm (9.1")      Available Model  DS-1273ZJ-DM32  Parameter  Model    Parameters  DS-1273ZJ-DM32  Wall Mounting Bracket for Dome Camera  Appearance Hikvision White  Material Aluminum Alloy  Dimension Φ 141.8 mm x 183.5 mm x 232 mm (5.6" x 7.2" x 9.1")  Weight 650 g (1.4 lb.)  Notes   The bracket should be installed on the flat wall.   The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the bracket.   The maximum load capacity of the bracket is 3 KG (6.6 lb.)....

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-1273ZJ-DM32

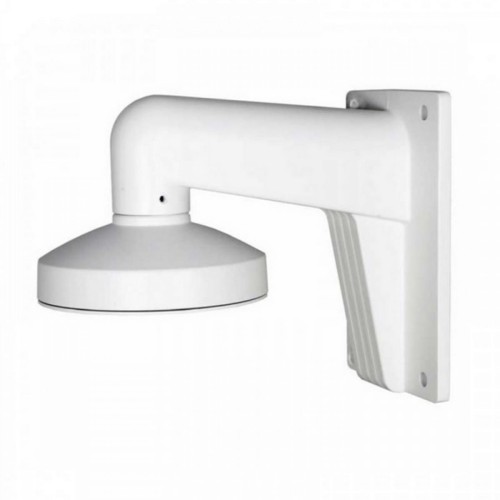

Wall Mounting Bracket for Dome Camera


Features
 Aluminum alloy material with surface spray treatment
 The lower bowl facilitates the installation
 Water proof design
Dimension
83.5 mm (3.3")
83
.5
mm
(3.3")
46 mm
(1.8")
85.7 mm
(3.4")
183
.5
mm
(7.2")
158
mm
(6.2")
6x M4
Depth:8 mm (0.3")
232 mm (9.1")


Available Model
DS-1273ZJ-DM32
Parameter
Model

Parameters
DS-1273ZJ-DM32
Wall Mounting Bracket for Dome Camera
Appearance Hikvision White
Material Aluminum Alloy
Dimension Φ 141.8 mm x 183.5 mm x 232 mm (5.6" x 7.2" x 9.1")
Weight 650 g (1.4 lb.)
Notes
 The bracket should be installed on the flat wall.
 The wall must be capable of supporting at least 3 times as much as the total weight of the camera and the bracket.
 The maximum load capacity of the bracket is 3 KG (6.6 lb.).
