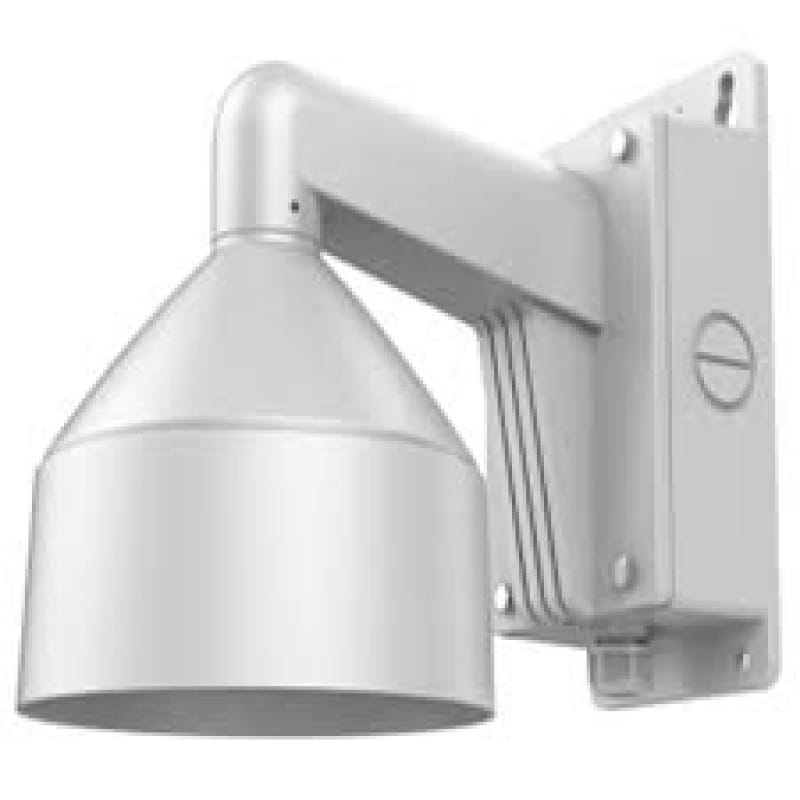

DS-1273ZJ-DM26-B

DS-1273ZJ-DM26-B  Wall Mount with Junction Box  For Dome Camera    Features:   Aluminum alloy material with surface spray  treatment   Waterproof design   Cable hole on bracket makes the feature  better   Design of cap is for convenient wiring  Dimension:              Order Model:  DS-1273ZJ-DM26-B  Parameter:  Model    Parameters  DS-1273ZJ-DM26-B  Wall Mount with Junction Box  For Dome Camera  Appearance Hikvision White  Material Aluminum Alloy  Dimension 310x260x185mm  Weight 2050g  Notice:   The bracket should be installed on flat wall   Waterproof rubber is necessary for outdoor application   The wall must be capable of supporting over 3 times as  much as the total weight of the camera and the mount   The maximum load capacity of the bracket is 4.5KG    Note: The actual bracket may vary from the picture above.  314.5  φ184.9  260...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-1273ZJ-DM26-B
Wall Mount with Junction Box
For Dome Camera

Features:
 Aluminum alloy material with surface spray
treatment
 Waterproof design
 Cable hole on bracket makes the feature
better
 Design of cap is for convenient wiring
Dimension:






Order Model:
DS-1273ZJ-DM26-B
Parameter:
Model

Parameters
DS-1273ZJ-DM26-B
Wall Mount with Junction Box
For Dome Camera
Appearance Hikvision White
Material Aluminum Alloy
Dimension 310x260x185mm
Weight 2050g
Notice:
 The bracket should be installed on flat wall
 Waterproof rubber is necessary for outdoor application
 The wall must be capable of supporting over 3 times as
much as the total weight of the camera and the mount
 The maximum load capacity of the bracket is 4.5KG

Note: The actual bracket may vary from the picture above.
314.5
φ184.9
260
