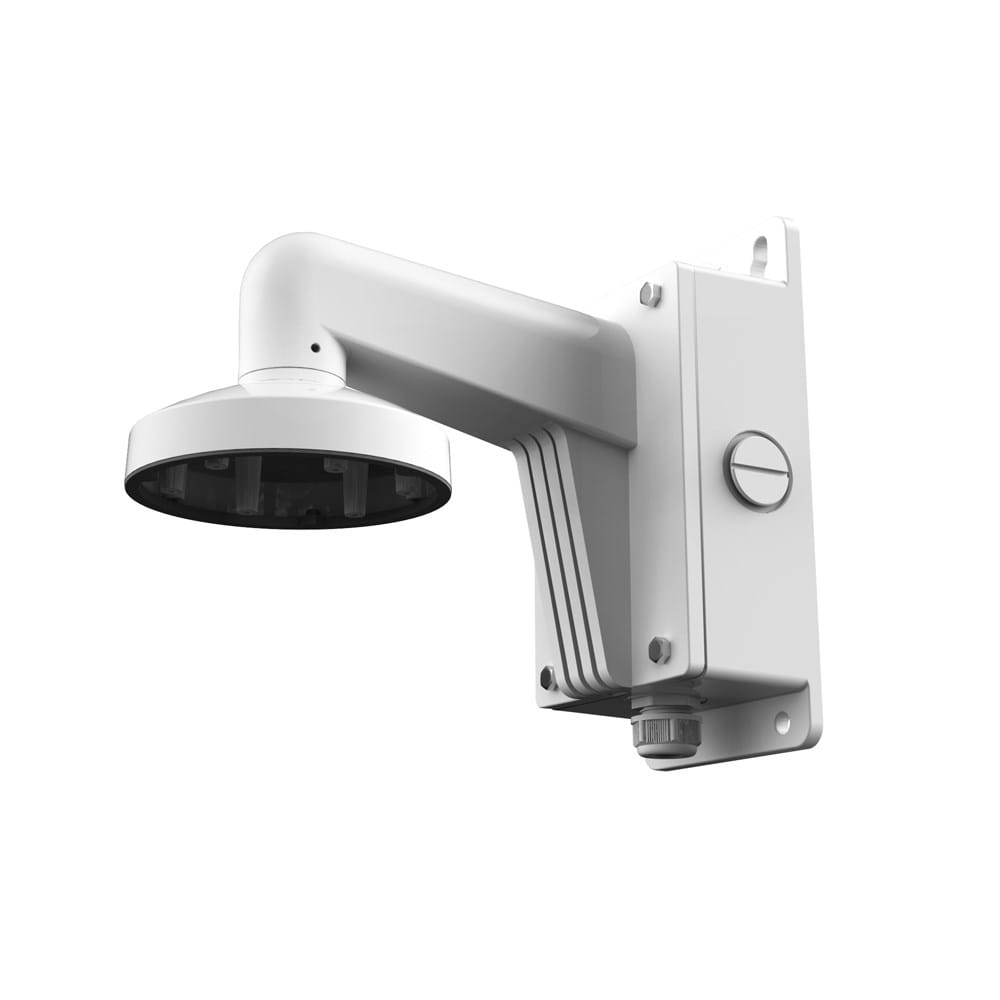

DS-1273ZJ-155B
Description
DS-1273ZJ-155 FEATURES: Ÿ Aluminum alloy material with surface spray treatment Ÿ The cap facilities the installation Ÿ Better water proof design SPEC Parameters Wall mount Colour Hik White Feature Suitable for dome camera Material Aluminum Alloy Dimension 155 x 183.5 x 240mm Weight 650g Ÿ Pay attention to the colour matching when select bracket Ÿ The bracket should be installed on a flat wall Ÿ The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount Ÿ The maximum load capacity of the bracket is 3kg 83.5 46 8 3 .5 Ø155 15 8 18 3 .5 85.7 120 unit: mm 240...
Warning! Product withdrawn from production!
Replacement product: DS-1473ZJ-155B
Replacement product code: 302701980
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
DS-1273ZJ-155
FEATURES:
Ÿ Aluminum alloy material with surface spray treatment
Ÿ The cap facilities the installation
Ÿ Better water proof design
SPEC
Parameters Wall mount
Colour Hik White
Feature Suitable for dome camera
Material Aluminum Alloy
Dimension 155 x 183.5 x 240mm
Weight 650g
Ÿ Pay attention to the colour matching when select bracket
Ÿ The bracket should be installed on a flat wall
Ÿ The wall must be capable of supporting over 3 times as
much as the total weight of the camera and the mount
Ÿ The maximum load capacity of the bracket is 3kg
83.5
46
8
3
.5
Ø155
15
8
18
3
.5
85.7
120
unit: mm
240
