DS-1273ZJ-130B-TRL

DS-1273ZJ-130-TRL        Note: The actual bracket may vary from the picture above.  Wall Mounting Bracket for Dome Camera  (with adaptor plate)  Features:   Aluminum alloy material with surface spray treatment   The outlet hole makes the feature looks better   Better water proof design   Convenient installation coordinating with lower bowl  Dimension:      Order Model:  DS-1273ZJ-130-TRL  Parameter:  Model    Parameters  DS-1273ZJ-130-TRL   Wall Mounting Bracket for  Dome Camera (with adaptor plate)  Appearance Hik White  Range of   Application  Suitable for dome camera wall mounting  Material Aluminum Alloy  Dimension 130x182x120mm  Weight 900g  Notice:   The bracket should be installed on flat wall   The wall must be capable of supporting over 3 times as  much as the total weight of the camera and the  mount.   The maximum load capacity of the bracket is 4.5KG...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-1273ZJ-130-TRL

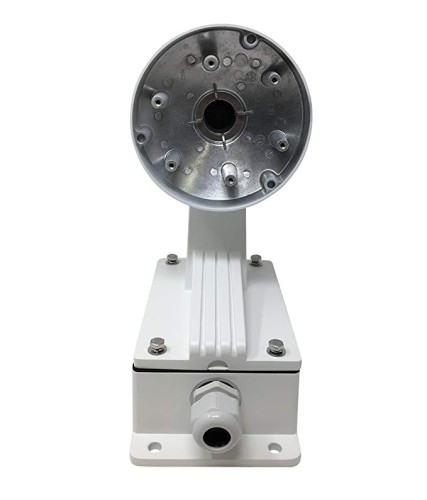

Note: The actual bracket may vary from the picture above.
Wall Mounting Bracket for Dome Camera
(with adaptor plate)
Features:
 Aluminum alloy material with surface spray treatment
 The outlet hole makes the feature looks better
 Better water proof design
 Convenient installation coordinating with lower bowl
Dimension:


Order Model:
DS-1273ZJ-130-TRL
Parameter:
Model

Parameters
DS-1273ZJ-130-TRL
Wall Mounting Bracket for
Dome Camera (with adaptor plate)
Appearance Hik White
Range of
Application
Suitable for dome camera wall mounting
Material Aluminum Alloy
Dimension 130x182x120mm
Weight 900g
Notice:
 The bracket should be installed on flat wall
 The wall must be capable of supporting over 3 times as
much as the total weight of the camera and the
mount.
 The maximum load capacity of the bracket is 4.5KG
