DS-1271ZJ-DM30
Description
DS-1271ZJ-DM30 Pendant Mounting Bracket for Dome Camera Features Aluminum alloy material with surface spray treatment Waterproof design Design of cap is for convenient wiring Dimension 6 5 0 Φ121.2 4-Φ8.5 Φ209 Φ181 4-M4 Depth 10 Available Model DS-1271ZJ-DM30 Parameters Model Parameters DS-1271ZJ-DM30 Pendant Mounting Bracket for Dome Camera Appearance Hikvision White Material Aluminum Alloy Dimension Φ209x650mm Weight 2050g Notes The bracket should be installed on flat wall Waterproof rubber is necessary for outdoor application The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 3KG...
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
DS-1271ZJ-DM30

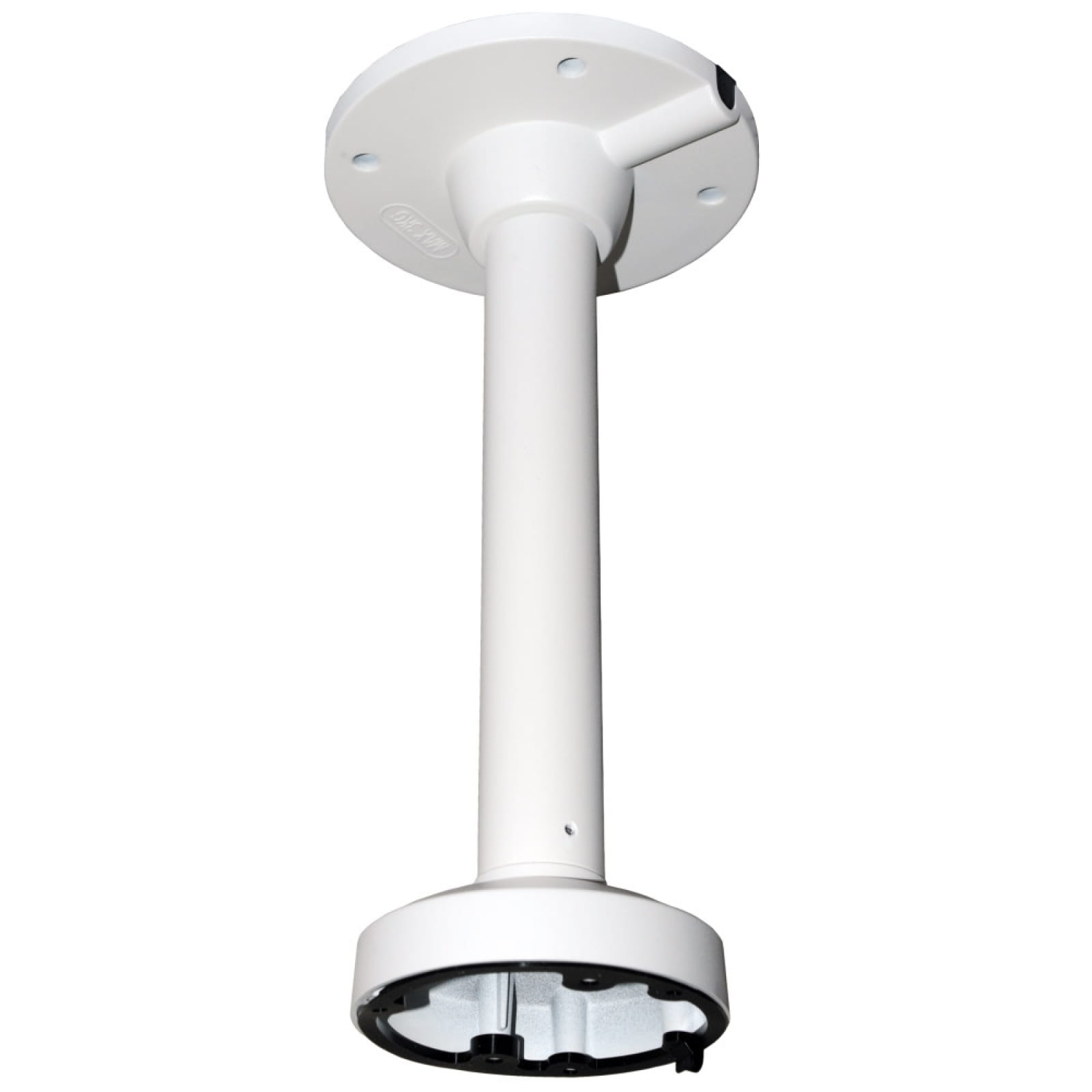

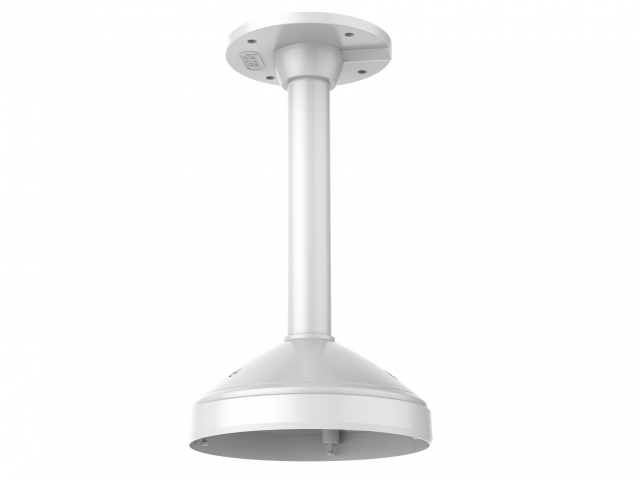

Pendant Mounting Bracket for Dome Camera
Features
Aluminum alloy material with surface spray treatment
Waterproof design
Design of cap is for convenient wiring
Dimension
6
5
0
Φ121.2
4-Φ8.5
Φ209
Φ181
4-M4 Depth 10
Available Model
DS-1271ZJ-DM30
Parameters
Model
Parameters
DS-1271ZJ-DM30
Pendant Mounting Bracket for Dome Camera
Appearance Hikvision White
Material Aluminum Alloy
Dimension Φ209x650mm
Weight 2050g
Notes
The bracket should be installed on flat wall
Waterproof rubber is necessary for outdoor application
The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount.
The maximum load capacity of the bracket is 3KG
