DS-1227ZJ

DS-1227ZJ  In-ceiling Mount Bracket for Dome Camera    Features:   For in-ceiling mounting   Aluminum alloy material with surface spray  treatment   Dimension:      Order Model:  DS-1227ZJ  Parameter:  Model  Parameter  DS-1227ZJ  In-ceiling Mount Bracket  Appearance Hikvision White  Range of  Application  Dome Camera  Material Aluminum Alloy  Dimension Φ210x90mm  Weight 600g  Notice:   The bracket should be installed on flat wall   The wall must be capable of supporting more than 3  times the weight of camera and bracket   Load capacity of bracket is 4.5KG  Model Suitable:  DS-2CD7X3PF(NF)-E(I)(Z),DS-2CD793PFWD-E(I)(Z),DS-2CD793NFWD-E(I)(Z),  DS-2CD7X4FWD-E(I)(Z),DS-2CD7XXF-E(I)(Z),DS-2CD783F-EP,DS-2CD4112F-(I),  DS-2CD4112FWD-(I),DS-2CD4124F-(I),DS-2CD4132FWD-(I), DS-2CD2712F-I(S),DS-2CD2732F-I(S)  Installation Step:  ① Choose flat wall for  installation and screw up the  adaptor          ② Complete the adaptor  installation  ③ Screw up the dome camera    ④ Ins...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-1227ZJ

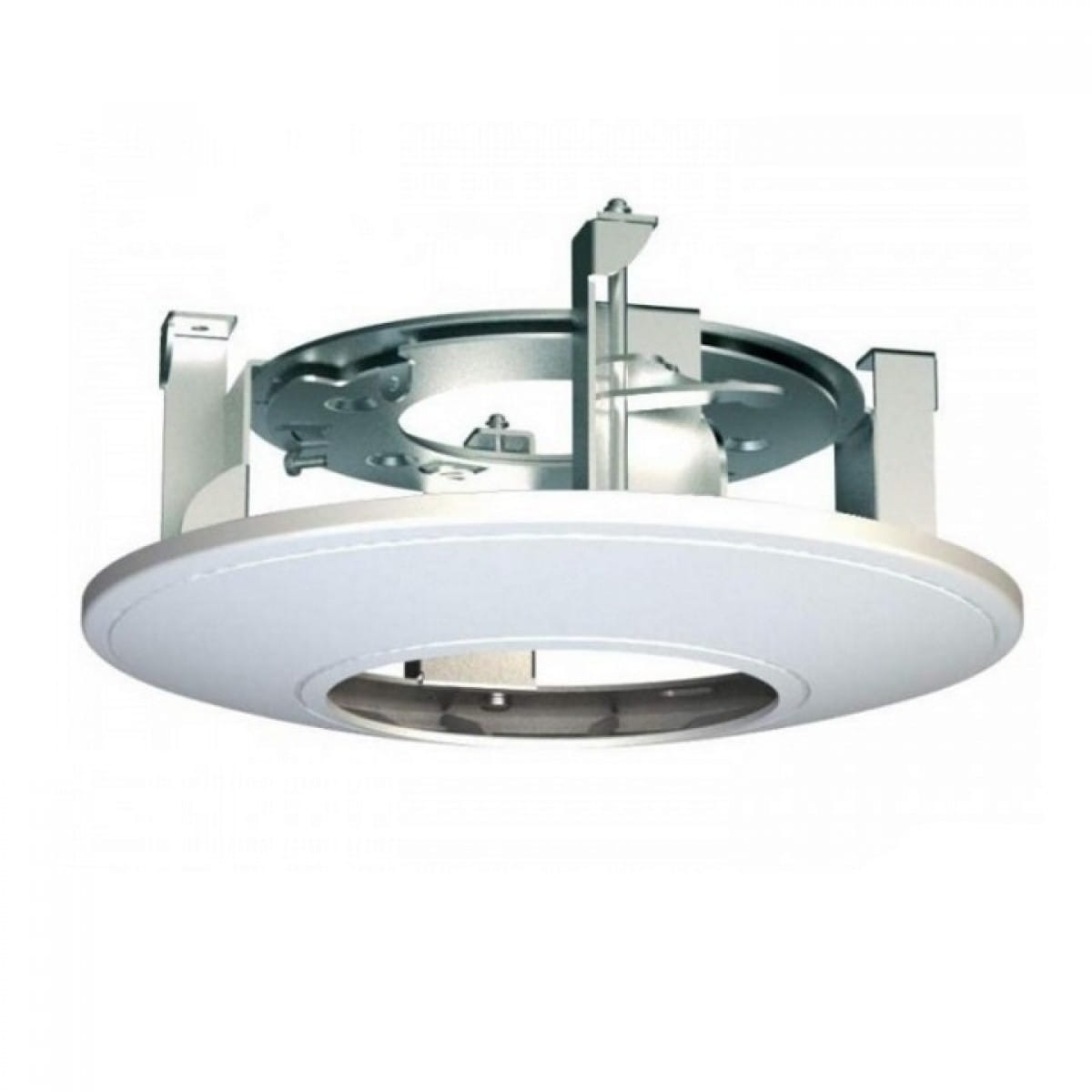

In-ceiling Mount Bracket for Dome Camera

Features:
 For in-ceiling mounting
 Aluminum alloy material with surface spray
treatment
Dimension:


Order Model:
DS-1227ZJ
Parameter:
Model
Parameter
DS-1227ZJ
In-ceiling Mount Bracket
Appearance Hikvision White
Range of
Application
Dome Camera
Material Aluminum Alloy
Dimension Φ210x90mm
Weight 600g
Notice:
 The bracket should be installed on flat wall
 The wall must be capable of supporting more than 3
times the weight of camera and bracket
 Load capacity of bracket is 4.5KG
Model Suitable:
DS-2CD7X3PF(NF)-E(I)(Z),DS-2CD793PFWD-E(I)(Z),DS-2CD793NFWD-E(I)(Z),
DS-2CD7X4FWD-E(I)(Z),DS-2CD7XXF-E(I)(Z),DS-2CD783F-EP,DS-2CD4112F-(I),
DS-2CD4112FWD-(I),DS-2CD4124F-(I),DS-2CD4132FWD-(I), DS-2CD2712F-I(S),DS-2CD2732F-I(S)
Installation Step:
① Choose flat wall for
installation and screw up the
adaptor




② Complete the adaptor
installation
③ Screw up the dome camera

④ Insert the dome camera and
bracket to the wall
⑤ Screw up the butterfly
clamp in clock-wise and clamp
the bracket to the wall


Tighten butterfly clamp
⑥ Tighten 3 screws to fix cap
ring
⑦ Installation complete

Note: The actual bracket may vary from the picture above.





To the left 10mm of screw is in
accordance with adaptor
