DS-1227ZJ-DM44

DS-1227ZJ-DM44   In-ceiling Mount      Feature   Steel and Plastic materials with surface spray treatment   Adopts magnetism design to install the camera   Saving spaces  Dimension  3-M44  Φ 128 mm  (Φ 5.04'')  Φ 225 mm  (Φ 8.86'')  256.1 mm (10.08'')  75.9 mm (2.99'')  70.9 mm (2.79'')  60.4 mm  (2.38'')      Available Model  DS-1227ZJ-DM44  Parameter  Model    Parameters  DS-1227ZJ-DM44  In-ceiling Mount  Appearance Hikvision White  Material SECC, PC&ABS  Dimension Φ 256.1 mm x 75.9 mm (Φ 10.08" x 2.99")  Weight Approx. 608.5 g (1.34 lb.)  Note   The mount should be installed on a flat surface.   Waterproof rubber is necessary for the outdoor application.   The wall should be capable of supporting at least 3 times as much as the total weight of the camera and the mount.   The maximum load capacity of the mount is 4.5 kg (9.92 lb.)....

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

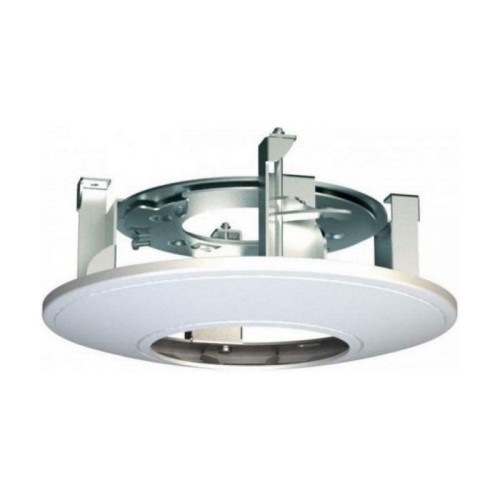

DS-1227ZJ-DM44
In-ceiling Mount


Feature
 Steel and Plastic materials with surface spray treatment
 Adopts magnetism design to install the camera
 Saving spaces
Dimension
3-M44
Φ 128 mm
(Φ 5.04'')
Φ 225 mm
(Φ 8.86'')
256.1 mm (10.08'')
75.9 mm (2.99'')
70.9 mm (2.79'')
60.4 mm
(2.38'')


Available Model
DS-1227ZJ-DM44
Parameter
Model

Parameters
DS-1227ZJ-DM44
In-ceiling Mount
Appearance Hikvision White
Material SECC, PC&ABS
Dimension Φ 256.1 mm x 75.9 mm (Φ 10.08" x 2.99")
Weight Approx. 608.5 g (1.34 lb.)
Note
 The mount should be installed on a flat surface.
 Waterproof rubber is necessary for the outdoor application.
 The wall should be capable of supporting at least 3 times as much as the total weight of the camera and the mount.
 The maximum load capacity of the mount is 4.5 kg (9.92 lb.).
