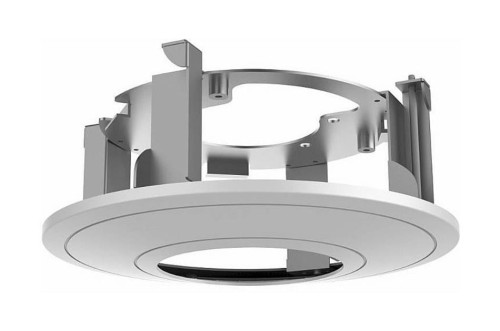

DS-1227ZJ-DM42

DS-1227ZJ-DM42  In-Ceiling Mount      Features   Steel and plastic material with surface spray treatment   Magnetic design facilitates dome camera installation   In-ceiling mounting saves installation space  Dimension  86  .9  mm  (3  .42  ''  )  98  .1  mm  (3  .86  ''  )      Available Model  DS-1227ZJ-DM42  Parameter  Model    Parameters  DS-1227ZJ-DM42  In-Ceiling Mount  Appearance Hikvision White  Material Steel and Plastic  Dimension Φ 225 mm x 98.1 mm (Φ 8.86" x 3.86")  Weight 710 g (1.57 lb.)  Notes   The mount should be installed on the flat surface.   Waterproof rubber is necessary for the outdoor application.   The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the mount.   The maximum load capacity of the in-ceiling mount is 4.5 kg (9.92 lb.)....

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-1227ZJ-DM42
In-Ceiling Mount


Features
 Steel and plastic material with surface spray treatment
 Magnetic design facilitates dome camera installation
 In-ceiling mounting saves installation space
Dimension
86
.9
mm
(3
.42
''
)
98
.1
mm
(3
.86
''
)


Available Model
DS-1227ZJ-DM42
Parameter
Model

Parameters
DS-1227ZJ-DM42
In-Ceiling Mount
Appearance Hikvision White
Material Steel and Plastic
Dimension Φ 225 mm x 98.1 mm (Φ 8.86" x 3.86")
Weight 710 g (1.57 lb.)
Notes
 The mount should be installed on the flat surface.
 Waterproof rubber is necessary for the outdoor application.
 The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the mount.
 The maximum load capacity of the in-ceiling mount is 4.5 kg (9.92 lb.).
