DS-1214-ZJ(FH)-P

DS -1214 -ZJ(FH)-P  Horizontal Pole Mount    Feature   For horizontal pole mounting   The clamps are made of stainless steel  Dimension 272  mm  (10  .7  ")  68 mm (2.68")  330  mm  (13  .0  ")  122.6 mm (4.83")  Ø70 mm (4.83")  Ø6.5 mm (0.26")  3-M6  46 mm (1.81")  43 mm (1.69")  Ø40 mm to 80 mm  (Ø1.57" to 3.15")      Available Model  DS-1214 -ZJ(FH)-P  Parameter  Model    Parameters    DS -1214 -ZJ(FH)-P  Horizontal Pole Mount  Appearance Platinum grey  Material Steel  Dimension 122.6 mm x 330 mm x 46 mm (4.83" x 13" x 1.81")  Weight 1.36 kg (3.0 lb.)  No te   Load capacity of the pole must be at least 3 times as much as the total weight of the camera, and the mount.   The moun t’s maximum load capacity is 6 kg (13.23 lb.).    01000020200604...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS -1214 -ZJ(FH)-P

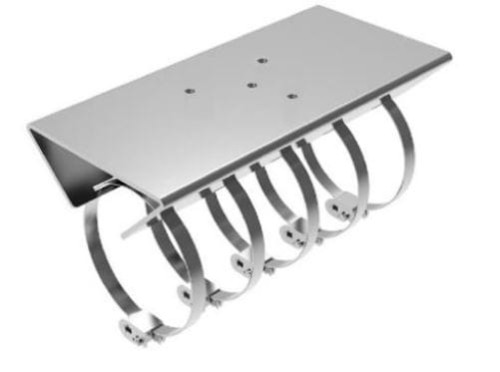

Horizontal Pole Mount

Feature
 For horizontal pole mounting
 The clamps are made of stainless steel
Dimension 272
mm
(10
.7
")
68 mm (2.68")
330
mm
(13
.0
")
122.6 mm (4.83")
Ø70 mm (4.83")
Ø6.5 mm (0.26")
3-M6
46 mm (1.81")
43 mm (1.69")
Ø40 mm to 80 mm
(Ø1.57" to 3.15")


Available Model
DS-1214 -ZJ(FH)-P
Parameter
Model

Parameters

DS -1214 -ZJ(FH)-P
Horizontal Pole Mount
Appearance Platinum grey
Material Steel
Dimension 122.6 mm x 330 mm x 46 mm (4.83" x 13" x 1.81")
Weight 1.36 kg (3.0 lb.)
No te
 Load capacity of the pole must be at least 3 times as much as the total weight of the camera, and the mount.
 The moun t’s maximum load capacity is 6 kg (13.23 lb.).

01000020200604
