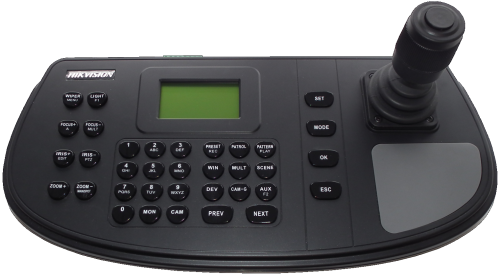

DS-1200KI

DS-1200KI Series Network Keyboard   128 x 64 screen   4-axis joystick   Connectable to the Multi-functional Video Center (MVC), Matrix Access Gateway (VAG), Video Wall  Controller, Decoder, etc.; and shortcut operation of camera/camera groups switch on video wall   Connectable to dome and realize PTZ control and picture capture by joystick operation   Connectable to DVR via network or serial port, and operation of front panel buttons   16 user accounts management: 1 admin and 15 operators   System upgrade and import / export of configuration files by USB-flash disk   Captured pictures(FAT32) can be stored in U-flash disk   Network access and configuration by Web browser support; and up to 1000 devices can be  managed in the keyboard operation mode  Features and Functions                Model DS-1200KI  System  LCD screen 128 x 64 pixel screen  Joystick 4-axis joystick  Control mode Network, RS-232, RS-422, RS-485  External  Interfaces  Network interface  1; 10 M/100 Mbps self-adaptive Ethernet  interface  Serial interface 1 RS-232, 1 RS-422, 1 RS-485  USB interface 1 x USB 2.0  General  Power supply 12 VDC  Consumption ≤ 4.5 W...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-1200KI Series Network Keyboard
 128 x 64 screen
 4-axis joystick
 Connectable to the Multi-functional Video Center (MVC), Matrix Access Gateway (VAG), Video Wall
Controller, Decoder, etc.; and shortcut operation of camera/camera groups switch on video wall
 Connectable to dome and realize PTZ control and picture capture by joystick operation
 Connectable to DVR via network or serial port, and operation of front panel buttons
 16 user accounts management: 1 admin and 15 operators
 System upgrade and import / export of configuration files by USB-flash disk
 Captured pictures(FAT32) can be stored in U-flash disk
 Network access and configuration by Web browser support; and up to 1000 devices can be
managed in the keyboard operation mode
Features and Functions







Model DS-1200KI
System
LCD screen 128 x 64 pixel screen
Joystick 4-axis joystick
Control mode Network, RS-232, RS-422, RS-485
External
Interfaces
Network interface
1; 10 M/100 Mbps self-adaptive Ethernet
interface
Serial interface 1 RS-232, 1 RS-422, 1 RS-485
USB interface 1 x USB 2.0
General
Power supply 12 VDC
Consumption ≤ 4.5 W
Working temperature -10 to +55° C (14 to 131° F)
Working humidity 10% to 90%
Dimensions (W x D x H) 435 x 193 x 110 mm (17.1 x 7.6 x 4.3 inch)
Weight ≤ 1 kg (2.2 lb)
DS-1200KI
010000160531
Available Models
Specifications
010000160100
8
