DS-1003KI
Description
www.hikvision.com First Choice for Security Professionals DS-1003KI RS-485 Keyboard Incorporate all DVR front panel functions Control DVR and PTZ separately Support DVR and keyboard cascading 3D joystick ard Key Features SpeciÞ cations DS-1003KI External Interface Communication Interface RS-485 Others Control Mode RS-485 Half-duplex Mode, Baud Rate: 1200 ~ 19200bps General LCD Screen 128mmx64mm Joystick 3D Max. Cable Length 1200m Power supply 12VDC Working temperature -10°C~+55°C Working humidity 10%~90% Dimension 360mm(D)x200mm(W)x108mm(H) Weight 3.3Kg...
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
www.hikvision.com
First Choice for Security Professionals

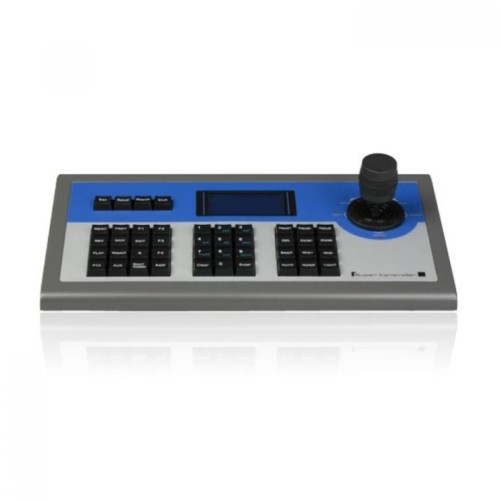

DS-1003KI
RS-485 Keyboard
Incorporate all DVR front panel functions
Control DVR and PTZ separately
Support DVR and keyboard cascading
3D joystick
ard
Key Features
SpeciÞ cations
DS-1003KI
External Interface Communication Interface RS-485
Others Control Mode RS-485 Half-duplex Mode, Baud Rate: 1200 ~ 19200bps
General
LCD Screen 128mmx64mm
Joystick 3D
Max. Cable Length 1200m
Power supply 12VDC
Working temperature -10°C~+55°C
Working humidity 10%~90%
Dimension 360mm(D)x200mm(W)x108mm(H)
Weight 3.3Kg
