DHL24-F600

Light Series | DHL24-F600    www.dahuasecurity.com  Features：  · Industrial level LCD panel, suitable for continuous 24/7  operation  · Physical resolution of 1920x1080  · High fidelity digital processing for a brilliant and vivid video  · Built-in speakers  · Good compatibility with DVRs and NVRs  DHL24-F600  23.8'' FHD LCD Monitor    Technical Specification  Model  ModelDHL24-F600  Display  Screen Size23.8"  Aspect Ratio16:9  Resolution 1920x1080 (FHD)  Backlight LED  Brightness/Luminance250 cd/㎡  Contrast 1000:1  Display Color16.7M(8bit)  Viewing Angle(H/V)178°(H)/178°(V)  Response Time14ms  Refresh Rate60Hz  Signals  InputHDMIx1, VGA(D-Sub)x1, Audiox1  OutputSpeaker2Wx2  General  Power SupplyAC100~240V (+/-10%), 50/60 Hz      Consumption (Standard) 30W  Consumption (Standby) ≤0.5W  TypeInternal  Net Weight 3.8kg (8.4lb)  Gross Weight5.2kg (11.5lb)  Bezel Width12.5mm (U/R/L), 18mm (B)  Wall Mount75x75 mm (3.0"x3.0")  Dimension without standard  (WxHxD)  553.2x328.1x48.5mm (21.8"x12.9"x1.9")  Package(WxHxD)605x445x143mm (23.8"x17.5"x5.6")  Work Environment  Temperature0℃~40℃ (32°F~104°F)  Humidity10%~85%  Accessory  Standard...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Light Series | DHL24-F600

www.dahuasecurity.com
Features：
· Industrial level LCD panel, suitable for continuous 24/7
operation
· Physical resolution of 1920x1080
· High fidelity digital processing for a brilliant and vivid video
· Built-in speakers
· Good compatibility with DVRs and NVRs

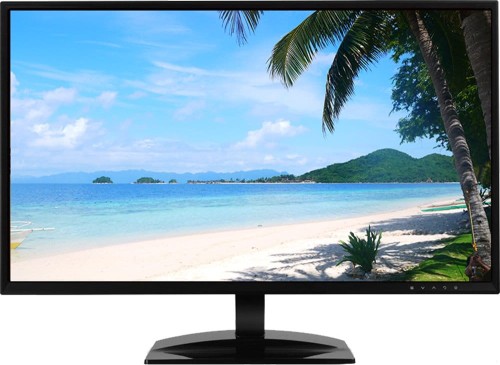

DHL24-F600
23.8'' FHD LCD Monitor

Technical Specification
Model
ModelDHL24-F600
Display
Screen Size23.8"
Aspect Ratio16:9
Resolution 1920x1080 (FHD)
Backlight LED
Brightness/Luminance250 cd/㎡
Contrast 1000:1
Display Color16.7M(8bit)
Viewing Angle(H/V)178°(H)/178°(V)
Response Time14ms
Refresh Rate60Hz
Signals
InputHDMIx1, VGA(D-Sub)x1, Audiox1
OutputSpeaker2Wx2
General
Power SupplyAC100~240V (+/-10%), 50/60 Hz


Consumption (Standard) 30W
Consumption (Standby) ≤0.5W
TypeInternal
Net Weight 3.8kg (8.4lb)
Gross Weight5.2kg (11.5lb)
Bezel Width12.5mm (U/R/L), 18mm (B)
Wall Mount75x75 mm (3.0"x3.0")
Dimension without standard
(WxHxD)
553.2x328.1x48.5mm (21.8"x12.9"x1.9")
Package(WxHxD)605x445x143mm (23.8"x17.5"x5.6")
Work Environment
Temperature0℃~40℃ (32°F~104°F)
Humidity10%~85%
Accessory
StandardVGA cable, power cable, pedestal
OptionalHanging bracket
Certifications
CertificationsCE/FCC

24h* 7

HDMI / VGA
1080p


Light Series | DHL24-F600

Dimensions(mm)
www.dahuasecurity.com
