DHL22-F600-S

Light Series | DHL22-F600-S    www.dahuasecurity.com  Features ：  · Physical resolution of 1920x1080  · High fidelity digital processing for a brilliant and vivid video  · Built-in speakers  · Good compatibility with DVRs and NVRs  · Low energy consumption, long service life  DHL22-F600-S  21.5'' FHD LCD Monitor    Technical Specification  Model  ModelDHL22-F600-S  Display  Screen Size21.5"  Aspect Ratio16:9  Resolution 1920x1080 (FHD)  Backlight LED  Brightness/Luminance200 cd/m  2  Contrast 1000:1  Display Color16.7M(8bit)  Viewing Angle(H/V)178°(H)/178°(V)  Response time15ms  Refresh Rate60Hz  Signals  InputVGA(D-Sub)x1, HDMIx1, Audiox1  OutputSpeaker2Wx2  General  Power Supply AC100~240V (+/-10%), 50/60 Hz      Consumption (Standard) 25W  Consumption (Standby) ≤0.5W  TypeInternal  Net Weight 3.2kg (7.1lb)  Gross Weight4.8kg (10.6lb)  Bezel Width13.5mm (U/R/L), 19mm (B)  Wall Mount75x75 mm (3.0"x3.0")  Dimension without standard  (WxHxD)  502.8x299.8x47.6mm (19.8"x1...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Light Series | DHL22-F600-S

www.dahuasecurity.com
Features ：
· Physical resolution of 1920x1080
· High fidelity digital processing for a brilliant and vivid video
· Built-in speakers
· Good compatibility with DVRs and NVRs
· Low energy consumption, long service life

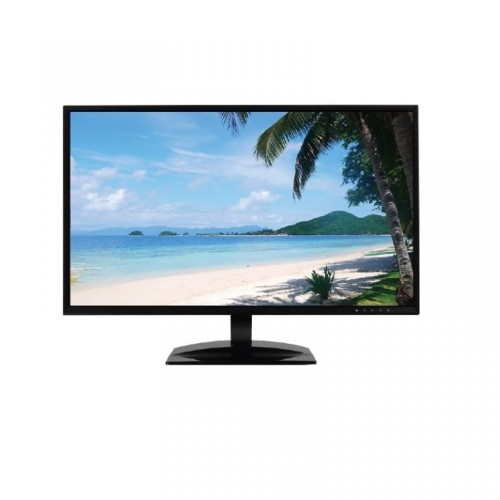

DHL22-F600-S
21.5'' FHD LCD Monitor

Technical Specification
Model
ModelDHL22-F600-S
Display
Screen Size21.5"
Aspect Ratio16:9
Resolution 1920x1080 (FHD)
Backlight LED
Brightness/Luminance200 cd/m
2
Contrast 1000:1
Display Color16.7M(8bit)
Viewing Angle(H/V)178°(H)/178°(V)
Response time15ms
Refresh Rate60Hz
Signals
InputVGA(D-Sub)x1, HDMIx1, Audiox1
OutputSpeaker2Wx2
General
Power Supply AC100~240V (+/-10%), 50/60 Hz


Consumption (Standard) 25W
Consumption (Standby) ≤0.5W
TypeInternal
Net Weight 3.2kg (7.1lb)
Gross Weight4.8kg (10.6lb)
Bezel Width13.5mm (U/R/L), 19mm (B)
Wall Mount75x75 mm (3.0"x3.0")
Dimension without standard
(WxHxD)
502.8x299.8x47.6mm (19.8"x11.5"x1.9")
Package(WxHxD)574x408x107mm (22.6"x16.1"x4.2")
Work Environment
Temperature0℃ ~40℃ (32°F~104°F)
Humidity 10%~85%
Accessory
StandardVGA cable, power cable, pedestal
OptionalHanging bracket
Certifications
CertificationsCE/FCC

HDMI / VGA
1080P
178°/178°

Light Series | DHL22-F600-S

Dimensions(mm)

www.dahuasecurity.com
