ARB1606
Description
ARB Series|DHI-ARB1606 Features · Support through RS485 access to the back-end storage · Support 16ch Alarm In/6ch Alarm Out interface · Support 2-bit DIP switch (0/1) to determine the different alarm box access; Max support 4 alarm boxes having access to the back-end storage device · Support universal 12V power supply; Support using a separate adapter or through 1 to 2 power cable using the DVR adapter to supply the alarm box with power · The front panel has a power indicator (PWR) which maintains lightening when the device is powered up; The front panel has a signal communication indicator (ACT) which lights up every 1 second when the communication is established between the alarm box and DVR equipment. · Linked alarm can be configured on the alarm input and output interface when the communication is established between DVR device and the alarm box. www.dahuasecurity.com DHI- ARB1606 Alarm Box www.dahuasecurity.com Education| DHI-ARB1606 Technical Specification General Communication1 RS485 port DIP Switch 2-bit Alarm Alarm In16ch Alarm Out 6ch Electrical Power Supply 12V/1A (or use 1 to 2 power cable to use the DVR pow...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
ARB Series|DHI-ARB1606
Features
· Support through RS485 access to the back-end storage
· Support 16ch Alarm In/6ch Alarm Out interface
· Support 2-bit DIP switch (0/1) to determine the different alarm box access; Max support 4 alarm boxes having access to the
back-end storage device
· Support universal 12V power supply; Support using a separate adapter or through 1 to 2 power cable using the DVR adapter
to supply the alarm box with power

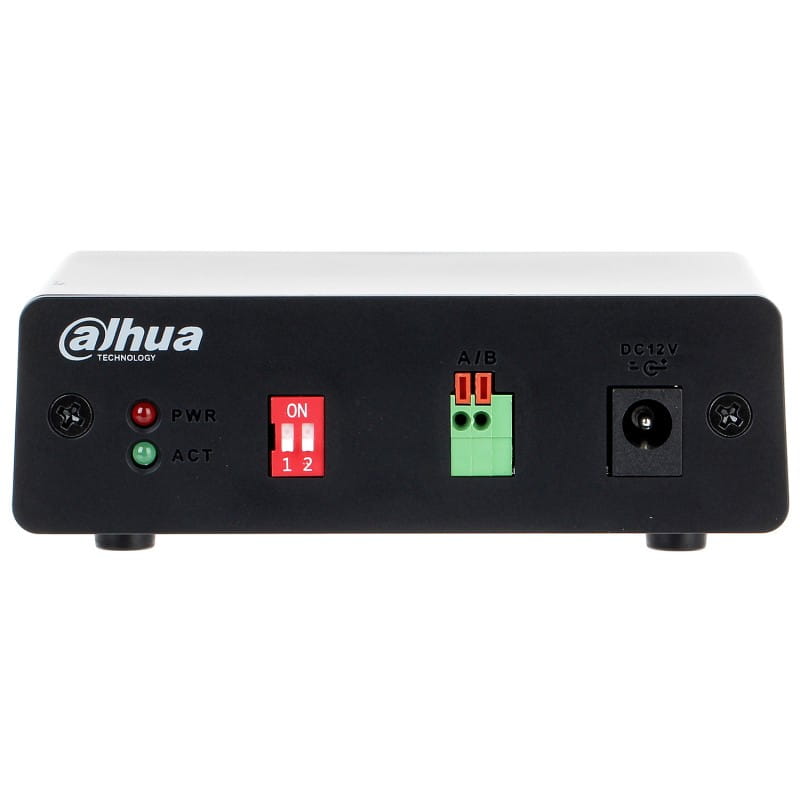

· The front panel has a power indicator (PWR) which maintains lightening when the device is powered up; The front panel has
a signal communication indicator (ACT) which lights up every 1 second when the communication is established between the
alarm box and DVR equipment.
· Linked alarm can be configured on the alarm input and output interface when the communication is established between
DVR device and the alarm box.
www.dahuasecurity.com
DHI- ARB1606
Alarm Box
www.dahuasecurity.com
Education| DHI-ARB1606
Technical Specification
General
Communication1 RS485 port
DIP Switch
2-bit
Alarm
Alarm In16ch
Alarm Out
6ch
Electrical
Power Supply
12V/1A (or use 1 to 2 power cable to use the DVR
power)
Power Consumption0.2W
Environmental
Operating Temperature-10°C ~ +55°C (+14°F ~ +131°F)
Operating Humidity10%~ 90% RH
Construction
Dimensions97.68mmx90.3mmx33mm (3.85" x 3.56" x 1.3")
Net Weight≤0.2kg(0.44lb)
InstallationDesktop installation
Certifications
Certifications
FCC: Coming Soon
CE:Coming Soon
UL:Coming Soon
Front Panel
Rear Panel
Rev 001.001© 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Dimensions(mm)
