DS-2CE16C0T-IRF(3.6mm)
DS-2CE16C0T-IRPF HD720p IR Bullet Camera * 1 megapixel high-performance CMOS * Analog HD output, up to 720p resolution * Day/Night switch * DNR * Smart IR * Up to 20 m IR distance * Switchable TVI/AHD/CVI/CVBS * IP66 Key Features Specifications Camera Image Sensor 1 MP CMOS image sensor Signal System PAL/NTSC Effective Pixels 1296(H) x 732(V) Min. illumination 0.1 Lux@(F1.2,AGC ON),0 Lux with IR Shutter Time 1/25 (1/30 )s to 1/50,000 s Lens 2.8 mm, 3.6 mm, 6 mm optional Field of view: 70.9° (3.6 mm), 92° (2.8 mm), 56.7° (6 mm) Lens Mount M12 Day & Night ICR Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° Synchronization Internal synchronization Video Frame Rate 720p@25fps/720p@30fps HD Video Output 1 analog HD output S/N Ratio >62dB General Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensing) Power Supply 12 V DC±15% Power Consumption Max. 4 W Protection Level IP66 IR Range Up to 20 m Dimensions Φ 70 mm x 154.5 mm ( 2.76" x 6.08") Weight 300 g (0.66 lb.) ...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE16C0T-IRF(6mm)
DS-2CE16C0T-IRPF HD720p IR Bullet Camera * 1 megapixel high-performance CMOS * Analog HD output, up to 720p resolution * Day/Night switch * DNR * Smart IR * Up to 20 m IR distance * Switchable TVI/AHD/CVI/CVBS * IP66 Key Features Specifications Camera Image Sensor 1 MP CMOS image sensor Signal System PAL/NTSC Effective Pixels 1296(H) x 732(V) Min. illumination 0.1 Lux@(F1.2,AGC ON),0 Lux with IR Shutter Time 1/25 (1/30 )s to 1/50,000 s Lens 2.8 mm, 3.6 mm, 6 mm optional Field of view: 70.9° (3.6 mm), 92° (2.8 mm), 56.7° (6 mm) Lens Mount M12 Day & Night ICR Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° Synchronization Internal synchronization Video Frame Rate 720p@25fps/720p@30fps HD Video Output 1 analog HD output S/N Ratio >62dB General Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensing) Power Supply 12 V DC±15% Power Consumption Max. 4 W Protection Level IP66 IR Range Up to 20 m Dimensions Φ 70 mm x 154.5 mm ( 2.76" x 6.08") Weight 300 g (0.66 lb.) ...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE16C0T-IRPF(3.6mm)
DS-2CE16C0T-IRPF HD720p IR Bullet Camera * 1 megapixel high-performance CMOS * Analog HD output, up to 720p resolution * Day/Night switch * DNR * Smart IR * Up to 20 m IR distance * Switchable TVI/AHD/CVI/CVBS * IP66 Key Features Specifications Camera Image Sensor 1 MP CMOS image sensor Signal System PAL/NTSC Effective Pixels 1296(H) x 732(V) Min. illumination 0.1 Lux@(F1.2,AGC ON),0 Lux with IR Shutter Time 1/25 (1/30 )s to 1/50,000 s Lens 2.8 mm, 3.6 mm, 6 mm optional Field of view: 70.9° (3.6 mm), 92° (2.8 mm), 56.7° (6 mm) Lens Mount M12 Day & Night ICR Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° Synchronization Internal synchronization Video Frame Rate 720p@25fps/720p@30fps HD Video Output 1 analog HD output S/N Ratio >62dB General Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensing) Power Supply 12 V DC±15% Power Consumption Max. 4 W Protection Level IP66 IR Range Up to 20 m Dimensions Φ 70 mm x 154.5 mm ( 2.76" x 6.08") Weight 300 g (0.66 lb.) ...
Warranty: 36 mon.
Datasheet
Availability: 0

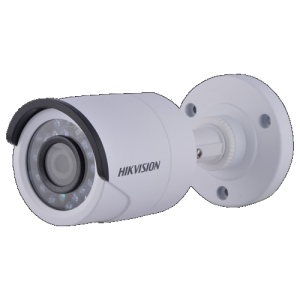

DS-2CE16C0T-IRPF(6mm)
DS-2CE16C0T-IRPF HD720p IR Bullet Camera * 1 megapixel high-performance CMOS * Analog HD output, up to 720p resolution * Day/Night switch * DNR * Smart IR * Up to 20 m IR distance * Switchable TVI/AHD/CVI/CVBS * IP66 Key Features Specifications Camera Image Sensor 1 MP CMOS image sensor Signal System PAL/NTSC Effective Pixels 1296(H) x 732(V) Min. illumination 0.1 Lux@(F1.2,AGC ON),0 Lux with IR Shutter Time 1/25 (1/30 )s to 1/50,000 s Lens 2.8 mm, 3.6 mm, 6 mm optional Field of view: 70.9° (3.6 mm), 92° (2.8 mm), 56.7° (6 mm) Lens Mount M12 Day & Night ICR Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° Synchronization Internal synchronization Video Frame Rate 720p@25fps/720p@30fps HD Video Output 1 analog HD output S/N Ratio >62dB General Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensing) Power Supply 12 V DC±15% Power Consumption Max. 4 W Protection Level IP66 IR Range Up to 20 m Dimensions Φ 70 mm x 154.5 mm ( 2.76" x 6.08") Weight 300 g (0.66 lb.) ...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE16C0T-IT1F(2.8mm)
DS-2CE16C0T-IT1F HD 720p EXIR Bullet Camera * 1 megapixel high-performance CMOS * Analog HD output, up to 720p resolution * Day/Night switch * DNR * Smart IR * Up to 20 m IR distance * Switchable TVI/AHD/CVI/CVBS * IP66 Key Features Specifications Camera Image Sensor 1 MP CMOS image sensor Signal System PAL/NTSC Effective Pixels 1296 (H) x 732 (V) Min. illumination 0.1 Lux@(F1.2,AGC ON),0 Lux with IR Shutter Time 1/25 (1/30) s to 1/50,000 s Lens 2.8 mm, 3.6 mm, 6 mm optional Field of view: 70.9° (3.6 mm), 92° (2.8 mm), 56.7° (6 mm) Lens Mount M12 Day & Night ICR Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° Synchronization Internal synchronization Video Frame Rate 720p@25fps/720p@30fps HD Video Output 1 analog HD output S/N Ratio >62dB General Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) Power Supply 12 V DC±15% Power Consumption Max. 4 W Protection Level IP66 IR Range Up to 20 m Dimensions 86.7 mm x 81.6 mm x 226 mm (3.4" x 3.2" x 8.9")
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE16C0T-IT1F(3.6mm)
DS-2CE16C0T-IT1F HD 720p EXIR Bullet Camera * 1 megapixel high-performance CMOS * Analog HD output, up to 720p resolution * Day/Night switch * DNR * Smart IR * Up to 20 m IR distance * Switchable TVI/AHD/CVI/CVBS * IP66 Key Features Specifications Camera Image Sensor 1 MP CMOS image sensor Signal System PAL/NTSC Effective Pixels 1296 (H) x 732 (V) Min. illumination 0.1 Lux@(F1.2,AGC ON),0 Lux with IR Shutter Time 1/25 (1/30) s to 1/50,000 s Lens 2.8 mm, 3.6 mm, 6 mm optional Field of view: 70.9° (3.6 mm), 92° (2.8 mm), 56.7° (6 mm) Lens Mount M12 Day & Night ICR Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° Synchronization Internal synchronization Video Frame Rate 720p@25fps/720p@30fps HD Video Output 1 analog HD output S/N Ratio >62dB General Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) Power Supply 12 V DC±15% Power Consumption Max. 4 W Protection Level IP66 IR Range Up to 20 m Dimensions 86.7 mm x 81.6 mm x 226 mm (3.4" x 3.2" x 8.9")
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE16C0T-IT1F(6mm)
DS-2CE16C0T-IT1F HD 720p EXIR Bullet Camera * 1 megapixel high-performance CMOS * Analog HD output, up to 720p resolution * Day/Night switch * DNR * Smart IR * Up to 20 m IR distance * Switchable TVI/AHD/CVI/CVBS * IP66 Key Features Specifications Camera Image Sensor 1 MP CMOS image sensor Signal System PAL/NTSC Effective Pixels 1296 (H) x 732 (V) Min. illumination 0.1 Lux@(F1.2,AGC ON),0 Lux with IR Shutter Time 1/25 (1/30) s to 1/50,000 s Lens 2.8 mm, 3.6 mm, 6 mm optional Field of view: 70.9° (3.6 mm), 92° (2.8 mm), 56.7° (6 mm) Lens Mount M12 Day & Night ICR Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° Synchronization Internal synchronization Video Frame Rate 720p@25fps/720p@30fps HD Video Output 1 analog HD output S/N Ratio >62dB General Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) Power Supply 12 V DC±15% Power Consumption Max. 4 W Protection Level IP66 IR Range Up to 20 m Dimensions 86.7 mm x 81.6 mm x 226 mm (3.4" x 3.2" x 8.9")
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE16C0T-IT3F(12mm)
DS-2CE16C0T-IT3F HD 720p EXIR Bullet Camera * 1 megapixel high-performance CMOS * Analog HD output, up to 720p resolution * Day/Night switch * DNR * Smart IR * Up to 40 m IR distance * Switchable TVI/AHD/CVI/CVBS * IP66 Key Features Specifications Camera Image Sensor 1 MP CMOS image sensor Signal System PAL/NTSC Effective Pixels 1296 (H) x 732 (V) Min. illumination 0.1 Lux@(F1.2,AGC ON),0 Lux with IR Shutter Time 1/25 (1/30) s to 1/50,000 s Lens 3.6 mm (2.8 mm, 6 mm, 8 mm, 12 mm, 16 mm optional) Field of view : 70.9° (3.6 mm), 92° (2.8 mm), 56.7° (6 mm), 38.6° (8 mm), 27.5° (12 mm), 17.7° (16 mm) Lens Mount M12 Day & Night ICR Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° Synchronization Internal synchronization Video Frame Rate 720p@25fps/720p@30fps HD Video Output 1 analog HD output S/N Ratio >62dB General Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) Power Supply 12 V DC±15% Power Consumption Max. 4 W Protection Level IP66 IR Range Up to 40 m ...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE16C0T-IT3F(3.6mm)
DS-2CE16C0T-IT3F HD 720p EXIR Bullet Camera * 1 megapixel high-performance CMOS * Analog HD output, up to 720p resolution * Day/Night switch * DNR * Smart IR * Up to 40 m IR distance * Switchable TVI/AHD/CVI/CVBS * IP66 Key Features Specifications Camera Image Sensor 1 MP CMOS image sensor Signal System PAL/NTSC Effective Pixels 1296 (H) x 732 (V) Min. illumination 0.1 Lux@(F1.2,AGC ON),0 Lux with IR Shutter Time 1/25 (1/30) s to 1/50,000 s Lens 3.6 mm (2.8 mm, 6 mm, 8 mm, 12 mm, 16 mm optional) Field of view : 70.9° (3.6 mm), 92° (2.8 mm), 56.7° (6 mm), 38.6° (8 mm), 27.5° (12 mm), 17.7° (16 mm) Lens Mount M12 Day & Night ICR Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° Synchronization Internal synchronization Video Frame Rate 720p@25fps/720p@30fps HD Video Output 1 analog HD output S/N Ratio >62dB General Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) Power Supply 12 V DC±15% Power Consumption Max. 4 W Protection Level IP66 IR Range Up to 40 m ...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE16C0T-IT3F(6mm)
DS-2CE16C0T-IT3F HD 720p EXIR Bullet Camera * 1 megapixel high-performance CMOS * Analog HD output, up to 720p resolution * Day/Night switch * DNR * Smart IR * Up to 40 m IR distance * Switchable TVI/AHD/CVI/CVBS * IP66 Key Features Specifications Camera Image Sensor 1 MP CMOS image sensor Signal System PAL/NTSC Effective Pixels 1296 (H) x 732 (V) Min. illumination 0.1 Lux@(F1.2,AGC ON),0 Lux with IR Shutter Time 1/25 (1/30) s to 1/50,000 s Lens 3.6 mm (2.8 mm, 6 mm, 8 mm, 12 mm, 16 mm optional) Field of view : 70.9° (3.6 mm), 92° (2.8 mm), 56.7° (6 mm), 38.6° (8 mm), 27.5° (12 mm), 17.7° (16 mm) Lens Mount M12 Day & Night ICR Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° Synchronization Internal synchronization Video Frame Rate 720p@25fps/720p@30fps HD Video Output 1 analog HD output S/N Ratio >62dB General Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) Power Supply 12 V DC±15% Power Consumption Max. 4 W Protection Level IP66 IR Range Up to 40 m ...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE16C0T-IT5F(12mm)
DS-2CE16C0T-IT5F HD 720p EXIR Bullet Camera * 1 megapixel high-performance CMOS * Analog HD output, up to 720p resolution * Day/Night switch * DNR * Smart IR * Up to 80 m IR distance * Switchable TVI/AHD/CVI/CVBS * IP66 Key Features Specifications Camera Image Sensor 1 MP CMOS Image Sensor Signal System PAL/NTSC Effective Pixels 1296 (H) x 732 (V) Min. illumination 0.1 Lux@(F1.2,AGC ON), 0 Lux with IR Shutter Time 1/25 (1/30) s to 1/50,000 s Lens 3.6 mm (6 mm, 8 mm, 12 mm, 16 mm optional) Field of view: 70.9° (3.6 mm), 56.7° (6 mm), 38.6° (8 mm), 27.5° (12 mm), 17.7° (16 mm) Lens Mount M12 Day & Night ICR Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360° Synchronization Internal synchronization Video Frame Rate 720p@25fps/720p@30fps HD Video Output 1 analog HD output S/N Ratio >62dB General Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) Power Supply 12 V DC±15% Power Consumption Max. 5 W Protection Level IP66 IR Range Up to 80 m Dimensions 86.7 mm x 81.6 m...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE16C0T-IT5F(6mm)
DS-2CE16C0T-IT5F HD 720p EXIR Bullet Camera * 1 megapixel high-performance CMOS * Analog HD output, up to 720p resolution * Day/Night switch * DNR * Smart IR * Up to 80 m IR distance * Switchable TVI/AHD/CVI/CVBS * IP66 Key Features Specifications Camera Image Sensor 1 MP CMOS Image Sensor Signal System PAL/NTSC Effective Pixels 1296 (H) x 732 (V) Min. illumination 0.1 Lux@(F1.2,AGC ON), 0 Lux with IR Shutter Time 1/25 (1/30) s to 1/50,000 s Lens 3.6 mm (6 mm, 8 mm, 12 mm, 16 mm optional) Field of view: 70.9° (3.6 mm), 56.7° (6 mm), 38.6° (8 mm), 27.5° (12 mm), 17.7° (16 mm) Lens Mount M12 Day & Night ICR Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360° Synchronization Internal synchronization Video Frame Rate 720p@25fps/720p@30fps HD Video Output 1 analog HD output S/N Ratio >62dB General Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) Power Supply 12 V DC±15% Power Consumption Max. 5 W Protection Level IP66 IR Range Up to 80 m Dimensions 86.7 mm x 81.6 m...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE16C0T-IT5F(8mm)
DS-2CE16C0T-IT5F HD 720p EXIR Bullet Camera * 1 megapixel high-performance CMOS * Analog HD output, up to 720p resolution * Day/Night switch * DNR * Smart IR * Up to 80 m IR distance * Switchable TVI/AHD/CVI/CVBS * IP66 Key Features Specifications Camera Image Sensor 1 MP CMOS Image Sensor Signal System PAL/NTSC Effective Pixels 1296 (H) x 732 (V) Min. illumination 0.1 Lux@(F1.2,AGC ON), 0 Lux with IR Shutter Time 1/25 (1/30) s to 1/50,000 s Lens 3.6 mm (6 mm, 8 mm, 12 mm, 16 mm optional) Field of view: 70.9° (3.6 mm), 56.7° (6 mm), 38.6° (8 mm), 27.5° (12 mm), 17.7° (16 mm) Lens Mount M12 Day & Night ICR Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360° Synchronization Internal synchronization Video Frame Rate 720p@25fps/720p@30fps HD Video Output 1 analog HD output S/N Ratio >62dB General Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation) Power Supply 12 V DC±15% Power Consumption Max. 5 W Protection Level IP66 IR Range Up to 80 m Dimensions 86.7 mm x 81.6 m...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE16C8T-IW3Z(6-22mm)
www.hikvision.com 178 DS-2CE16C8T-IW3Z HD720P Motorized Vari-focal HLC Bullet Camera DS-2CE16C8T-IW3Z Available Models Dimension • 1.27 Megapixel high-performance CMOS • Analog HD output, up to 720P resolution • Low illumination • 6 – 22mm motorized vari-focal lens • True Day/Night • OSD menu, 3D DNR • IP66 weatherproof • Up the Coax(HIKVISION-C, Pelco-C Protocol) Key features DS-2CE16C8T-IW3Z Camera Image Sensor 1.27MP CMOS Image Sensor Signal System PAL/NTSC Effective Pixels 1305(H)*977(V) Min. illumination 0.001 Lux @(F1.2,AGC ON), 0 Lux with white light Shutter Time 1/25(1/30)s to 1/50,000s Lens ...
Warranty: 36 mon.
Datasheet
Availability: 0
DS-2CE16D0T-IRF(2.8mm)
DS-2CE16D0T-IRF HD 1080p IR Bullet Camera * 2 megapixel high performance CMOS * Analog HD output, up to 1080p resolution * Day/Night switch * Smart IR * Up to 20 m IR distance * Switchable TVI/AHD/CVI/CVBS * IP66 Key Features Specifications Camera Image Sensor 2MP CMOS image sensor Signal System PAL/NTSC Effective Pixels 1920 (H) x 1080 (V) Min. illumination 0.01 Lux@(F1.2,AGC ON), 0 Lux with IR Shutter Time 1/25 (1/30) s to 1/50,000 s Lens 2.8 mm, 3.6 mm, 6 mm optional Field of view: 103° (2.8 mm), 82.2° (3.6 mm), 54° (6 mm) Lens Mount M12 Day & Night ICR Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° Synchronization Internal synchronization Video Frame Rate 1080p@25fps/1080p@30fps HD Video Output 1 analog HD output S/N Ratio >62 dB General Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation) Power Supply 12 V DC±15% Power Consumption Max. 4 W Protection Level IP66 IR Range Up to 20 m Dimensions Φ 70 mm x 154.5 mm (Φ 2.76" x 6.08") Weight 400 g (0.88 lb.) ...
Warranty: 36 mon.
Datasheet
Availability: 101-500
DS-2CE16D0T-IRF(2.8mm)(C)
DS-2CE16D0T-IRF (C) 2 MP Camera • 2 MP, 1920 x 1080 resolution • 2.8 mm, 3.6 mm, 6 mm fixed focal lens • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) • Smart IR, up to 25 m IR distance • IP67 Specification Camera Image Sensor2 MP CMOS Signal SystemPAL/NTSC Resolution1920 (H) x 1080 (V) Frame Rate TVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s Lens2.8 mm, 3.6 mm, 6 mm fixed lens Field of View 2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8° Lens MountM12 Day & NightICR WDR (Wide Dynamic Range)Digital WDR Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360° Menu Image ModeSTD/HIGH-SAT AGCYes Day/Night ModeAuto/Color/BW (Black and White) White BalanceAuto/Manual AE (Auto Exposure) ModeDWDR/BLC/HLC/Global Noise...
Warranty: 36 mon.
Datasheet
Availability: 51-100
DS-2CE16D0T-IRPF(2.8mm)
DS-2CE16D0T-IR HD1080P IR Bullet Camera * 2 Megapixel high-performance CMOS * Analog HD output, up to 1080P resolution * True Day/Night, Smart IR * Up to 20m IR distance * IP66 weatherproof Key Features Specifications Camera Image Sensor 2MP CMOS Image Sensor Signal System PAL/NTSC Effective Pixels 1920(H)*1080(V) Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR Shutter Time 1/25(1/30)s to 1/50,000s Lens 2.8mm, 3.6mm, 6mm optional Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm) Lens Mount M12 Day & Night ICR Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360° Synchronization Internal synchronization Video Frame Rate 1080p@25fps/1080p@30fps HD Video Output 1 Analog HD output S/N Ratio ＞62dB General Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing) Power Supply 12 VDC±15% Power Consumption Max. 4W Protection Level IP66 IR Range Up to 20m Dimensions Φ70x149.5mm (Φ2.76”x5.89”) Weight 400g Order Models DS-2CE16D0T-IR unit:mm ...
Warranty: 36 mon.
Datasheet
Availability: 101-500
DS-2CE16D0T-IT3(3.6mm)
DS-2CE16D0T-IT3 HD1080P EXIR Bullet Camera 2 Megapixel high-performance CMOS Analog HD output, up to 1080P resolution True Day/Night, Smart IR EXIR technology, up to 40m IR distance IP66 weatherproof Key Features Specifications Camera Image Sensor 2MP CMOS Image Sensor Signal System PAL/NTSC Effective Pixels 1920(H)*1080(V) Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR Shutter Time 1/25(1/30)s to 1/50,000s Lens 3.6mm (2.8mm, 6mm, 8mm, 12mm, 16mm optional) Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm), 37.7°(8mm), 24.2°(3.6mm), 18.8°(6mm) Lens Mount M12 Day & Night ICR Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360° Synchronization Internal synchronization Video Frame Rate 1080p@25fps/1080p@30fps HD Video Output 1 Analog HD output S/N Ratio ＞62dB General Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing) Power Supply 12 VDC±15% Power Consumption Max. 4W Protection Level IP66 IR Range Up to 40m Dimensions 86.2...
Warranty: 36 mon.
Datasheet
Availability: 1-5
