DS-2CE16D8T-IT3F(2.8mm)

Key Features   2 MP high performance CMOS   Ultra-low light   1920 x 1080 resolution   2.8 mm, 3.6 mm, 6 mm, 8 mm fixed lens   130 dB true WDR, 3D DNR   EXIR 2.0, smart IR, up to 60 m IR distance   4 in 1 video output (switchable TVI/AHD/CVI/CVBS)   IP67   Up the coax (HIKVISION-C)      DS-2CE16D8T-IT3F  2 MP Ultra-Low Light Bullet Camera          Camera  Image Sensor 2.0 megapixel progressive scan CMOS  Signal System PAL/NTSC  Resolution 1920 (H) x 1080 (V)  Frame Rate  PAL: 1080p@25fps, 1080p@30fps  NTSC: 1080p@25fps, 1080p@30fps  Min. illumination Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Lens 2.8 mm, 3.6 mm, 6 mm, 8 mm fixed lens  Horizontal Field of View 104° (2.8 mm), 79.1° (3.6 mm), 50.2° (6 mm), 38.7° (8 mm)  Lens Mount M12  Day & Night IR cut filter  WDR (Wide Dynamic Range) ≥ 130 dB  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180, Rotate: 0° to 360°  Menu  Image Mode STD/HIGH-SAT  AGC Support  Day/Night Mode Auto/Color/BW (Black White)  White Balance Auto/Manual  AE (Auto Exposure) Mode WDR/BLC/HLC/Global  Privacy Mask ...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Features
 2 MP high performance CMOS
 Ultra-low light
 1920 x 1080 resolution
 2.8 mm, 3.6 mm, 6 mm, 8 mm fixed lens
 130 dB true WDR, 3D DNR
 EXIR 2.0, smart IR, up to 60 m IR distance
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67
 Up the coax (HIKVISION-C)

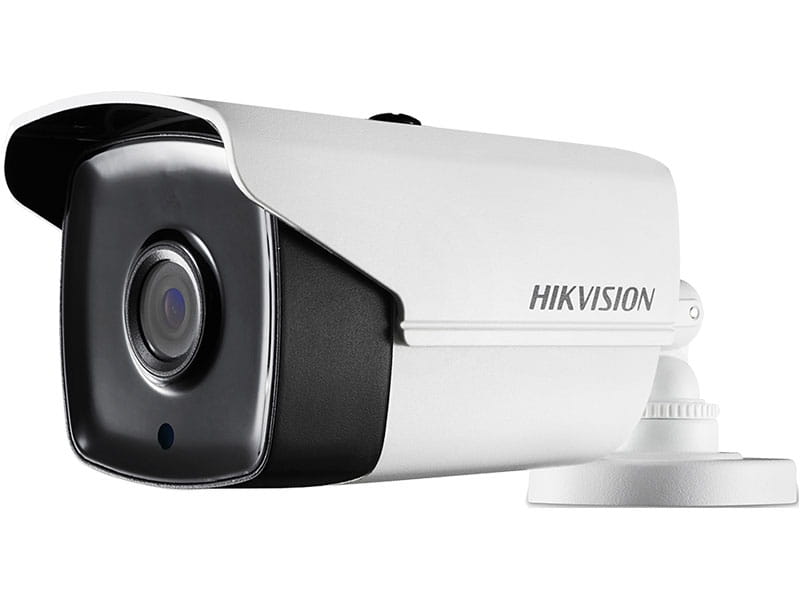

DS-2CE16D8T-IT3F
2 MP Ultra-Low Light Bullet Camera




Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Resolution 1920 (H) x 1080 (V)
Frame Rate
PAL: 1080p@25fps, 1080p@30fps
NTSC: 1080p@25fps, 1080p@30fps
Min. illumination Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm, 3.6 mm, 6 mm, 8 mm fixed lens
Horizontal Field of View 104° (2.8 mm), 79.1° (3.6 mm), 50.2° (6 mm), 38.7° (8 mm)
Lens Mount M12
Day & Night IR cut filter
WDR (Wide Dynamic Range) ≥ 130 dB
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180, Rotate: 0° to 360°
Menu
Image Mode STD/HIGH-SAT
AGC Support
Day/Night Mode Auto/Color/BW (Black White)
White Balance Auto/Manual
AE (Auto Exposure) Mode WDR/BLC/HLC/Global
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable motion areas
NR (Noise Reduction) 3D/2D
Language English
Functions Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%
Power Consumption Max. 3.4 W
Ingress Protection IP67
Material Metal
IR Range Up to 60 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 81.6 mm x 86.7 mm x 226 mm (3.2" x 3.4" x 8.9")
Weight Approx. 560 g (1.23 lb.)
Specification



Order Models
DS-2CE16D8T-IT3F
Dimension
226 mm (8.9")86.7 mm (3.4")
81
.
6
mm
(
3
.
2
")
Ø 55 mm
(2.2")
120°
120°
3-Ø 4.2 mm
(0.17")


Accessory


DS-1280ZJ-XS Junction Box
