DS-2CE16D8T-AIT3ZF(2.7-13.5mm)

Availability: 0
Price: €156.01 156.01
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 300511385

Description

Key Features   2 MP high performance CMOS   Ultra-low light   1920 x 1080 resolution   2.7 mm to 13.5 mm varifocal lens, auto focus   130 dB true WDR, 3D DNR   Smart IR, up to 60 m IR distance   4 in 1 video output (switchable TVI/AHD/CVI/CVBS)   IP67   Up the coax (HIKVISION-C)      DS-2CE16D8T-(A)IT3ZF  2 MP Ultra-Low Light Bullet Camera          Camera  Image Sensor 2 MP CMOS  Signal System PAL/NTSC  Resolution 1920 (H) x 1080 (V)  Frame Rate  PAL: 1080p@25fps  NTSC: 1080p@30fps  Min. Illumination Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR  Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s  Slow Shutter MAX. 16 times  Lens 2.7 mm to 13.5 mm motorized, auto focus  Horizontal Field of View 103° to 32.1°  Lens Mount Φ14  Day & Night ICR  WDR (Wide Dynamic Range) ≥ 130 dB  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°  Menu  Image Mode STD/HIGH-SAT  AGC Yes  Day/Night Mode Auto/Color/BW (Black and White)  White Balance Auto/Manual  AE (Auto Exposure) Mode WDR/BLC/HLC/Global  Privacy Mask 4 programmable privacy masks  Motion Detection 4 programmable moti...

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

Key Features
 2 MP high performance CMOS
 Ultra-low light
 1920 x 1080 resolution
 2.7 mm to 13.5 mm varifocal lens, auto focus
 130 dB true WDR, 3D DNR
 Smart IR, up to 60 m IR distance
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67
 Up the coax (HIKVISION-C)

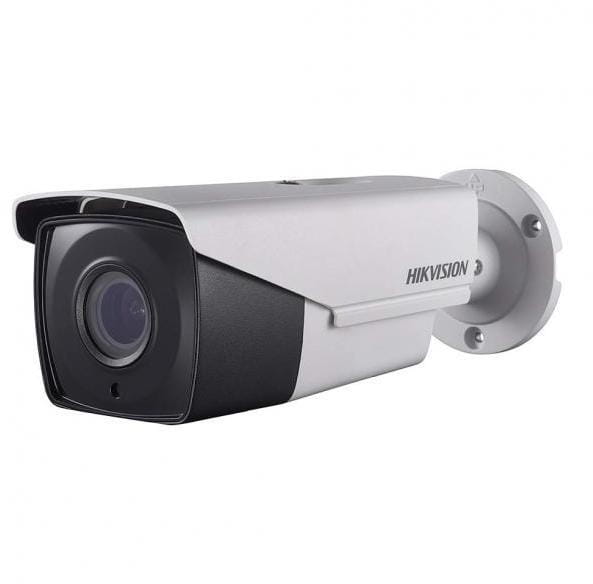

DS-2CE16D8T-(A)IT3ZF
2 MP Ultra-Low Light Bullet Camera




Camera
Image Sensor 2 MP CMOS
Signal System PAL/NTSC
Resolution 1920 (H) x 1080 (V)
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Min. Illumination Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Slow Shutter MAX. 16 times
Lens 2.7 mm to 13.5 mm motorized, auto focus
Horizontal Field of View 103° to 32.1°
Lens Mount Φ14
Day & Night ICR
WDR (Wide Dynamic Range) ≥ 130 dB
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
Menu
Image Mode STD/HIGH-SAT
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
AE (Auto Exposure) Mode WDR/BLC/HLC/Global
Privacy Mask 4 programmable privacy masks
Motion Detection 4 programmable motion areas
NR (Noise Reduction) 3D DNR/2D DNR
Language English
Functions Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
Power Supply
12 VDC ±25%, 24 VAC ±25%
*You are recommended to use one power adapter to supply the power for one camera.
Power Consumption
Max. 7.5W,
-A: Max. 9W
Ingress Protection IP67
Material Metal
IR Range Up to 60 m
Communication HIKVISION-C
Dimensions 85 mm x 92 mm x 269.6 mm (3.3" x 3.6" x 10.6")
Weight
Approx. 910 g (2.01 lb.),
-A: Approx. 940 g (2.07 lb.)
Specification



Order Models
DS-2CE16D8T-AIT3ZF
DS-2CE16D8T-IT3ZF
Dimension
92 mm (3.6")
85
mm
(3
.3
")
269.6 mm (10.6")
155.6 mm (6.2")
241.3 mm (9.5")
3-Φ4.3 mm (Φ0.17")
Φ85.3 mm (Φ3.36")
Φ70 mm
(Φ2.76")
3*10-24UNC-2A







Accessory









DS-1275ZJ-SUS
Vertical pole mount
DS-1276ZJ-SUS
Corner mount
DS-1280ZJ-S
Junction box
