DS-2CE16D5T-IT3(2.8mm)

www.hikvision.com    DS-2CE16D5T-IT1/IT3  HD1080P EXIR Bullet Camera  t HD1080P Video Output  t Adopt HDTVI Technology  t True Day/Night  t OSD menu, 3D DNR, Smart IR  t EXIR technology, 20/40m IR distance  t IP66 weatherproof  t Up the Coax(via coaxial cable)  DS-2CE16D5T-IT1  DS-2CE16D5T-IT3    DS-2CE16D5T-IT1DS-2CE16D5T-IT3  Camera  Image Sensor2 MP CMOS Image Sensor  Signal SystemPAL/NTSC  Effective Pixels1920(H)*1080(V)  Min. Illumination0.01 Lux @(F1.2,AGC ON), 0 Lux with IR  Shutter Time1/25 s to 1/50,000 s  Lens  3.6mm (2.8mm, 6mm, 8mm optional)3.6mm (2.8mm, 6mm, 8mm, 12mm, 16mm optional)  Angle of View: 82.6°(3.6mm), 103.5°(2.8mm),  54.4°(6mm), 38°(8mm)  Angle of View: 82.6°(3.6mm), 103.5°(2.8mm),  54.4°(6mm), 38°(8mm), 24.4°(12mm), 18.9°(16mm)  Lens MountM12  Day & NightICR  SynchronizationInternal synchronization  Video Frame Rate1080p@25fps/1080p@30fps  HD Video Output 1 Analog HD output  CVBS Output 1Vp-p Composite Output(75/BNC)  S/N RatioMore than 52dB  WDR120dB  Menu  SceneIndoor, Outdoor, Indoor1, LOW-LIGHT  Camera IDOn/off (15 characters, position programmable)  AGCSupport  D/N ModeColor/BW/EXT  White BalanceATW, AWC-SET, Indoor, Outdoor, M...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

www.hikvision.com

DS-2CE16D5T-IT1/IT3

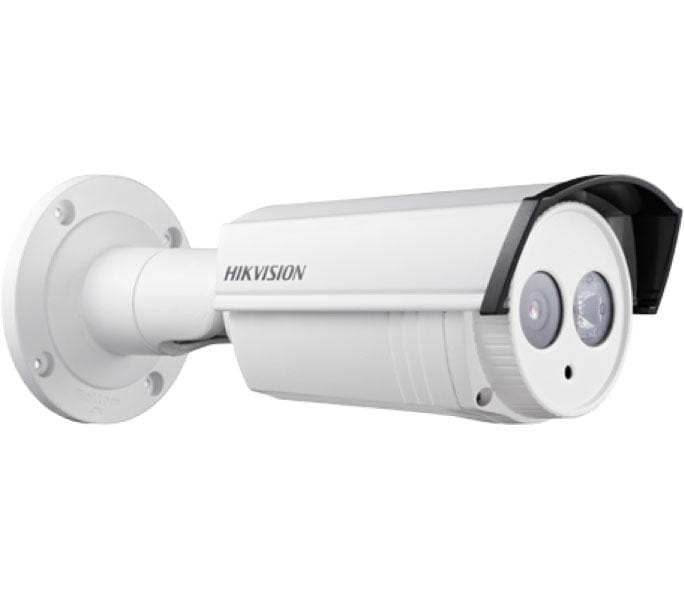

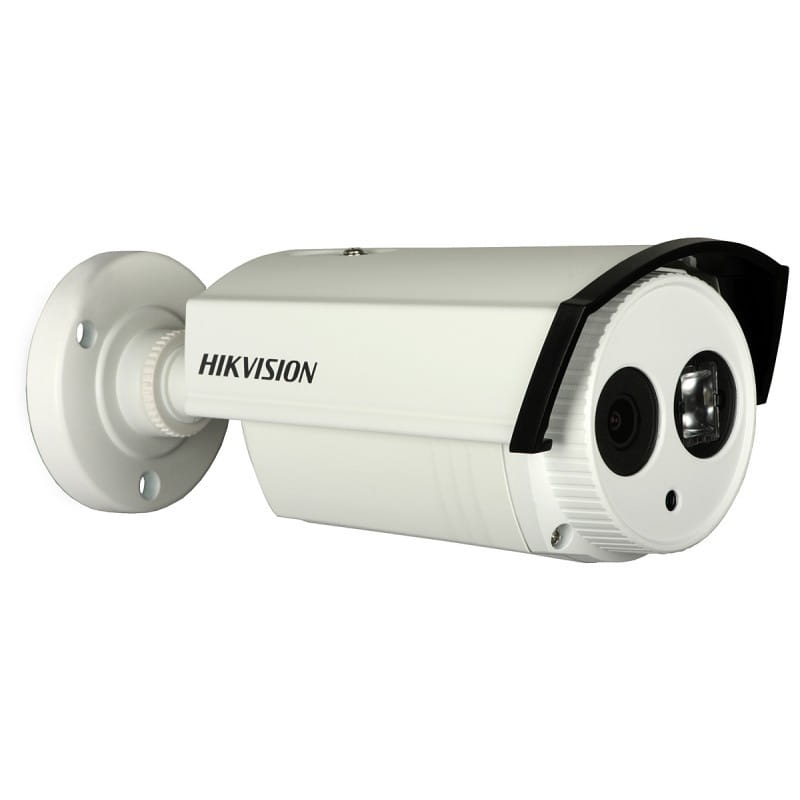

HD1080P EXIR Bullet Camera
t HD1080P Video Output
t Adopt HDTVI Technology
t True Day/Night
t OSD menu, 3D DNR, Smart IR
t EXIR technology, 20/40m IR distance
t IP66 weatherproof
t Up the Coax(via coaxial cable)
DS-2CE16D5T-IT1
DS-2CE16D5T-IT3

DS-2CE16D5T-IT1DS-2CE16D5T-IT3
Camera
Image Sensor2 MP CMOS Image Sensor
Signal SystemPAL/NTSC
Effective Pixels1920(H)*1080(V)
Min. Illumination0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
Shutter Time1/25 s to 1/50,000 s
Lens
3.6mm (2.8mm, 6mm, 8mm optional)3.6mm (2.8mm, 6mm, 8mm, 12mm, 16mm optional)
Angle of View: 82.6°(3.6mm), 103.5°(2.8mm),
54.4°(6mm), 38°(8mm)
Angle of View: 82.6°(3.6mm), 103.5°(2.8mm),
54.4°(6mm), 38°(8mm), 24.4°(12mm), 18.9°(16mm)
Lens MountM12
Day & NightICR
SynchronizationInternal synchronization
Video Frame Rate1080p@25fps/1080p@30fps
HD Video Output 1 Analog HD output
CVBS Output 1Vp-p Composite Output(75/BNC)
S/N RatioMore than 52dB
WDR120dB
Menu
SceneIndoor, Outdoor, Indoor1, LOW-LIGHT
Camera IDOn/off (15 characters, position programmable)
AGCSupport
D/N ModeColor/BW/EXT
White BalanceATW, AWC-SET, Indoor, Outdoor, Manual
Privacy MaskOn/Off, maximum 8 zones
Motion DetectionOn/Off, maximum 4 zones
BLCSupport
Anti-ickerOn/off
Language
English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish, Polish, Russian,
Portuguese, Dutch, Turkish, Hebrew and Arabic
Functions
Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction,
SMART D-ZOOM
General
Working Temperature/
Humidity
-30 °C - 60 °C (-22 °F - 140 °F)
Humidity 90% or less (non-condensing)
Power Supply12 VDC
Power ConsumptionMax. 4W
Weather Proof RatingsIP66
IR RangeUp to 20mUp to 40m
Communication
Up the coax(need UTC controller)
Protocol: Pelco-C(Coaxitron)
Dimensions94.6x83x210.8mm(3.72”x3.27”x8.30”)
Weight700g (1.54 lbs)
Key features
Dimensions
Available models

OSD

ICR

Scan

BLC

Accessories

Video balun
DS-1H18
2MP

Max. 5W
