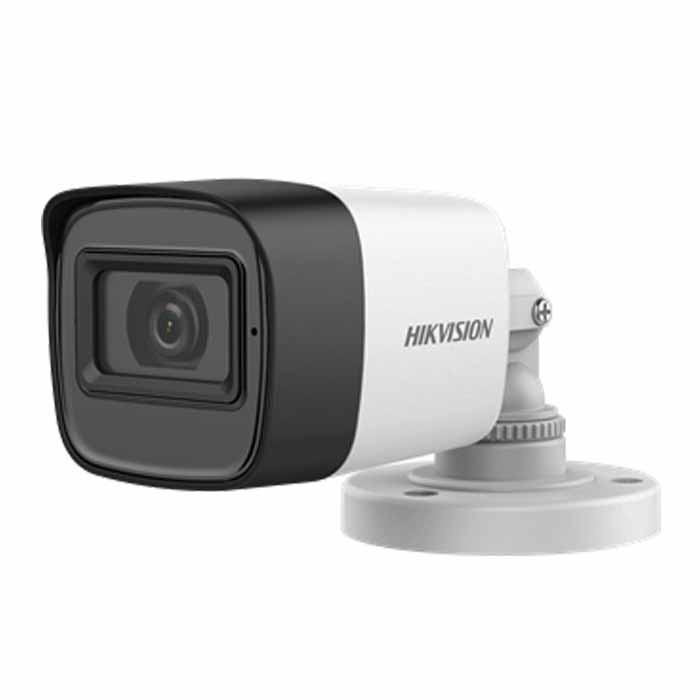

DS-2CE16D0T-ITFS(2.8mm)

Availability: >1000
Price: €49.55 49.55
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 300511744

Description

DS-2CE16D0T-ITFS  2 MP Audio Camera          • 2 MP, 1920 x 1080 resolution  • 2.8 mm, 3.6 mm, 6 mm fixed focal lens  • Smart IR, up to 30 m IR distance  • Audio over coaxial cable, built-in mic  • 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)  • IP67        Specification    Camera  Image Sensor2 MP CMOS  Signal SystemPAL/NTSC  Resolution1920 (H) x 1080 (V)    Frame Rate  TVI: 1080P@30fps, 1080P@25fps  AHD: 1080P@30fps, 1080P@25fps  CVI: 1080P@30fps, 1080P@25fps  CVBS: PAL/NTSC    Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR    Shutter Time  PAL: 1/25 s to 1/50, 000 s  NTSC: 1/30 s to 1/50, 000 s    Lens2.8 mm, 3.6 mm, 6 mm fixed lens    Field of View  2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°  3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°  6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°    Lens MountM12  Day & NightICR  WDR (Wide Dynamic Range)Digital WDR  AudioBuilt-in mic  Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°  Menu  Image ModeSTD/HIGH-SAT  AGCYes  Day/Night ModeAuto/Color/BW (Black and White)  White Bala...

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

DS-2CE16D0T-ITFS
2 MP Audio Camera




• 2 MP, 1920 x 1080 resolution
• 2.8 mm, 3.6 mm, 6 mm fixed focal lens
• Smart IR, up to 30 m IR distance
• Audio over coaxial cable, built-in mic
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP67



Specification

Camera
Image Sensor2 MP CMOS
Signal SystemPAL/NTSC
Resolution1920 (H) x 1080 (V)

Frame Rate
TVI: 1080P@30fps, 1080P@25fps
AHD: 1080P@30fps, 1080P@25fps
CVI: 1080P@30fps, 1080P@25fps
CVBS: PAL/NTSC

Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s

Lens2.8 mm, 3.6 mm, 6 mm fixed lens

Field of View
2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°
3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°

Lens MountM12
Day & NightICR
WDR (Wide Dynamic Range)Digital WDR
AudioBuilt-in mic
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
Menu
Image ModeSTD/HIGH-SAT
AGCYes
Day/Night ModeAuto/Color/BW (Black and White)
White BalanceAuto/Manual
AE (Auto Exposure) ModeDWDR/BLC/HLC/Global
Noise Reduction2D DNR
LanguageEnglish
FunctionBrightness, Sharpness, Mirror, Smart IR
Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
General
Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Power Supply12 VDC ± 25%
Power ConsumptionMax. 3.7 W
Protection LevelIP67
MaterialMetal
IR RangeUp to 30 m


General
CommunicationHIKVISION-C
Dimensions58 mm x 61 mm x 158.6 mm (2.28" x 2.40" x 6.42")
WeightApprox. 292 g (0.64 lb.)

Available Model
DS-2CE16D0T-ITFS
Dimension

Accessory



DS-1280ZJ-XS
Junction Box
