DS-2CE16D0T-IRPF(2.8mm)

DS-2CE16D0T-IR  HD1080P IR Bullet Camera    * 2 Megapixel high-performance CMOS  * Analog HD output, up to 1080P resolution  * True Day/Night, Smart IR  * Up to 20m IR distance  * IP66 weatherproof    Key Features                      Specifications          Camera  Image Sensor 2MP CMOS Image Sensor  Signal System PAL/NTSC  Effective Pixels 1920(H)*1080(V)  Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR  Shutter Time 1/25(1/30)s to 1/50,000s  Lens  2.8mm, 3.6mm, 6mm optional  Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm)  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°  Synchronization Internal synchronization  Video Frame Rate 1080p@25fps/1080p@30fps  HD Video Output 1 Analog HD output  S/N Ratio ＞62dB  General  Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)  Power Supply 12 VDC±15%  Power Consumption Max. 4W  Protection Level IP66  IR Range Up to 20m  Dimensions Φ70x149.5mm (Φ2.76”x5.89”)  Weight 400g    Order Models  DS-2CE16D0T-IR        unit:mm  ...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2CE16D0T-IR

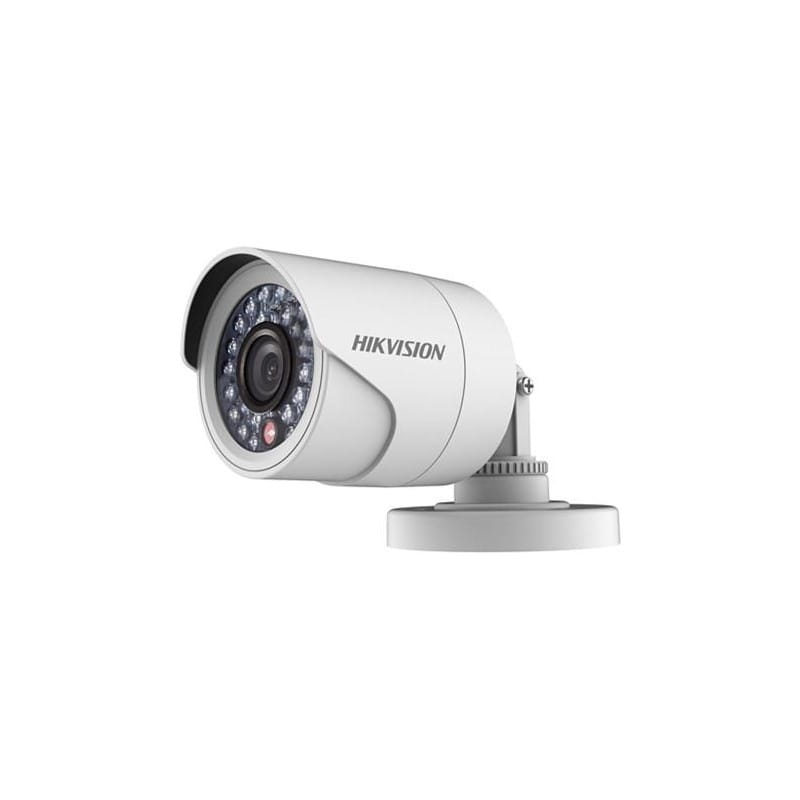

HD1080P IR Bullet Camera

* 2 Megapixel high-performance CMOS
* Analog HD output, up to 1080P resolution
* True Day/Night, Smart IR
* Up to 20m IR distance
* IP66 weatherproof

Key Features










Specifications




Camera
Image Sensor 2MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1920(H)*1080(V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25(1/30)s to 1/50,000s
Lens
2.8mm, 3.6mm, 6mm optional
Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°
Synchronization Internal synchronization
Video Frame Rate 1080p@25fps/1080p@30fps
HD Video Output 1 Analog HD output
S/N Ratio ＞62dB
General
Operating Conditions -40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
Power Supply 12 VDC±15%
Power Consumption Max. 4W
Protection Level IP66
IR Range Up to 20m
Dimensions Φ70x149.5mm (Φ2.76”x5.89”)
Weight 400g

Order Models
DS-2CE16D0T-IR



unit:mm
154.5(6.08")
n54.7(2.15")
n70(2.76")
3- n4.2(0.17")
58.3(2.3")



Dimensions

20150918
Accessories


DS-1280ZJ-XS DS-1H18 X41T
Junction box Video Balun Camera Tester
