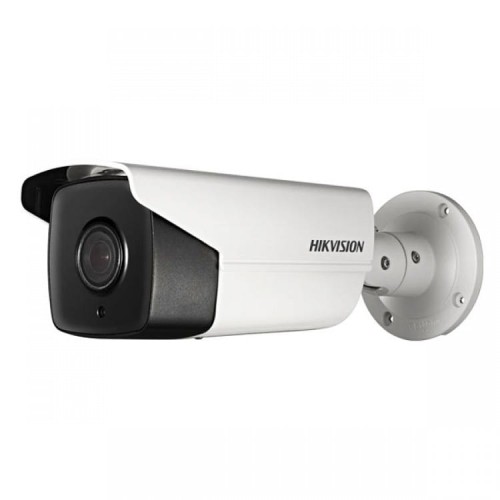

DS-2CE16C0T-IT5F(6mm)

DS-2CE16C0T-IT5F  HD 720p EXIR Bullet Camera    * 1 megapixel high-performance CMOS  * Analog HD output, up to 720p resolution  * Day/Night switch  * DNR  * Smart IR  * Up to 80 m IR distance  * Switchable TVI/AHD/CVI/CVBS  * IP66  Key Features                      Specifications          Camera  Image Sensor 1 MP CMOS Image Sensor  Signal System PAL/NTSC  Effective Pixels 1296 (H) x 732 (V)  Min. illumination 0.1 Lux@(F1.2,AGC ON), 0 Lux with IR  Shutter Time 1/25 (1/30) s to 1/50,000 s  Lens  3.6 mm (6 mm, 8 mm, 12 mm, 16 mm optional)  Field of view: 70.9° (3.6 mm), 56.7° (6 mm), 38.6° (8 mm), 27.5° (12 mm), 17.7° (16 mm)  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°  Synchronization Internal synchronization  Video Frame Rate 720p@25fps/720p@30fps  HD Video Output 1 analog HD output  S/N Ratio >62dB  General  Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)  Power Supply 12 V DC±15%  Power Consumption Max. 5 W  Protection Level IP66  IR Range Up to 80 m  Dimensions 86.7 mm x 81.6 m...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2CE16C0T-IT5F
HD 720p EXIR Bullet Camera

* 1 megapixel high-performance CMOS
* Analog HD output, up to 720p resolution
* Day/Night switch
* DNR
* Smart IR
* Up to 80 m IR distance
* Switchable TVI/AHD/CVI/CVBS
* IP66
Key Features










Specifications




Camera
Image Sensor 1 MP CMOS Image Sensor
Signal System PAL/NTSC
Effective Pixels 1296 (H) x 732 (V)
Min. illumination 0.1 Lux@(F1.2,AGC ON), 0 Lux with IR
Shutter Time 1/25 (1/30) s to 1/50,000 s
Lens
3.6 mm (6 mm, 8 mm, 12 mm, 16 mm optional)
Field of view: 70.9° (3.6 mm), 56.7° (6 mm), 38.6° (8 mm), 27.5° (12 mm), 17.7° (16 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
Synchronization Internal synchronization
Video Frame Rate 720p@25fps/720p@30fps
HD Video Output 1 analog HD output
S/N Ratio >62dB
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply 12 V DC±15%
Power Consumption Max. 5 W
Protection Level IP66
IR Range Up to 80 m
Dimensions 86.7 mm x 81.6 mm x 226 mm(3.4" x 3.2" x 8.9")
Weight 700 g (1.54 lb.)

Order Model
DS-2CE16C0T-IT5F







226 mm (8.9")
86.7 mm (3.4")
8
1.
6

m
m

(
3
.
2
"
)
Φ 55 mm
(2.2")
3-Φ 4.2 mm
(0.17")
1
2
0

°

1
2
0

°



Accessories



DS-1280ZJ-XS
Junction Box
DS-1H18
Video Balun
X41T
Camera Tester





Dimensions
