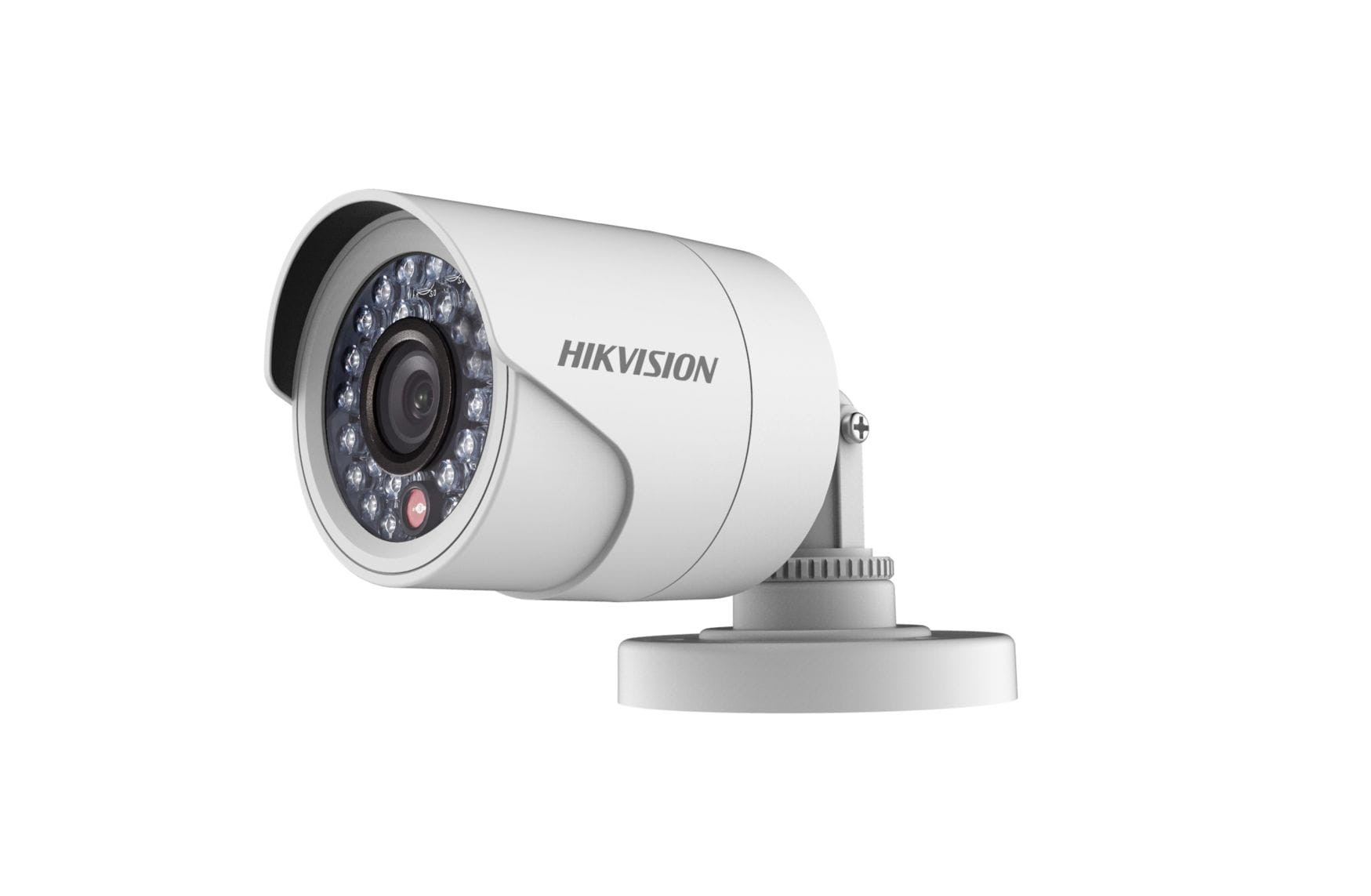

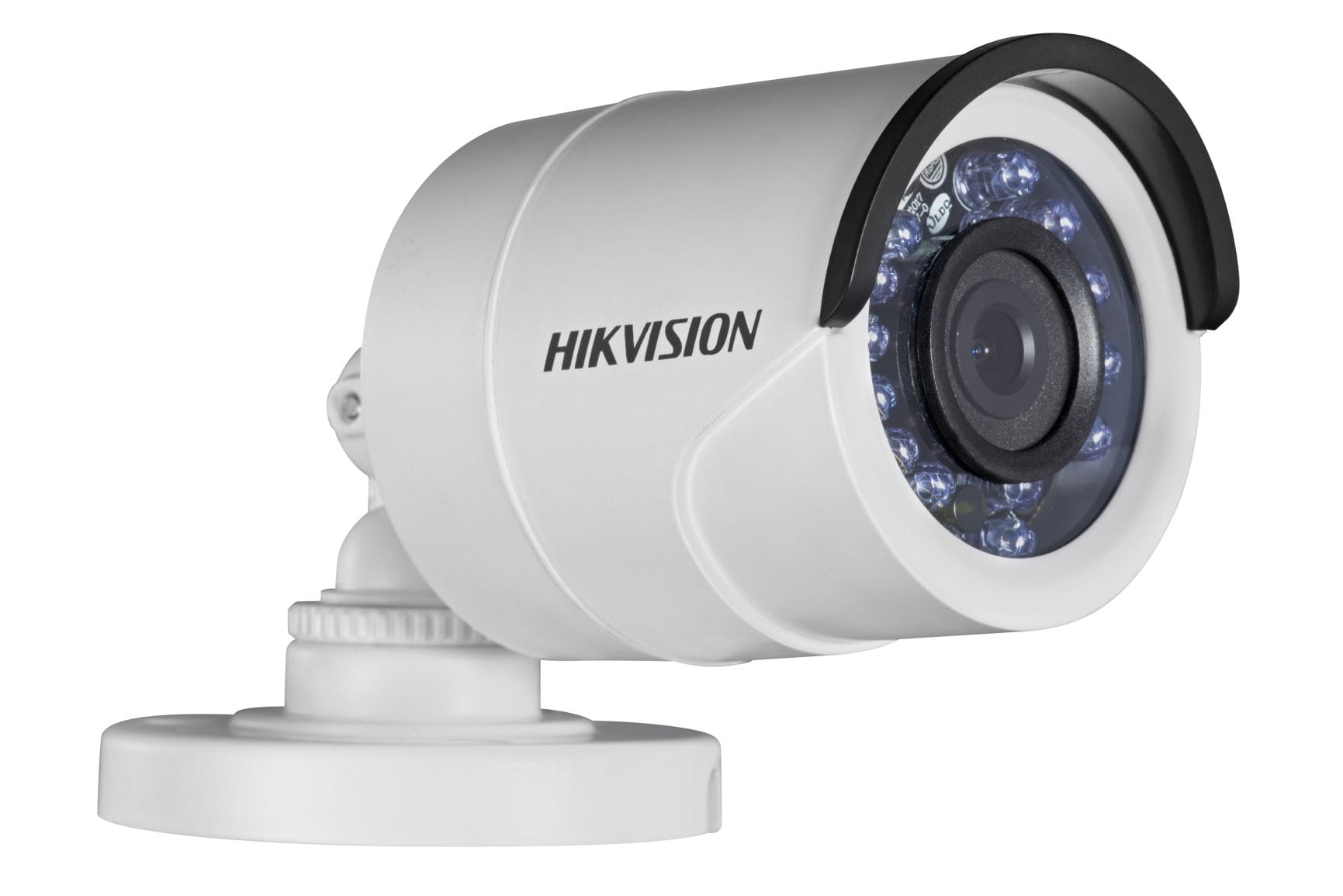

DS-2CE16C0T-IRF(6mm)

DS-2CE16C0T-IRPF  HD720p IR Bullet Camera    * 1 megapixel high-performance CMOS  * Analog HD output, up to 720p resolution  * Day/Night switch  * DNR  * Smart IR  * Up to 20 m IR distance  * Switchable TVI/AHD/CVI/CVBS  * IP66  Key Features                    Specifications          Camera  Image Sensor 1 MP CMOS image sensor  Signal System PAL/NTSC  Effective Pixels 1296(H) x 732(V)  Min. illumination 0.1 Lux@(F1.2,AGC ON),0 Lux with IR  Shutter Time 1/25 (1/30 )s to 1/50,000 s  Lens  2.8 mm, 3.6 mm, 6 mm optional  Field of view: 70.9° (3.6 mm), 92° (2.8 mm), 56.7° (6 mm)  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°  Synchronization Internal synchronization  Video Frame Rate 720p@25fps/720p@30fps  HD Video Output 1 analog HD output  S/N Ratio >62dB  General  Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensing)  Power Supply 12 V DC±15%  Power Consumption Max. 4 W  Protection Level IP66  IR Range Up to 20 m  Dimensions Φ 70 mm x 154.5 mm ( 2.76" x 6.08")  Weight 300 g (0.66 lb.)  ...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2CE16C0T-IRPF
HD720p IR Bullet Camera

* 1 megapixel high-performance CMOS
* Analog HD output, up to 720p resolution
* Day/Night switch
* DNR
* Smart IR
* Up to 20 m IR distance
* Switchable TVI/AHD/CVI/CVBS
* IP66
Key Features









Specifications




Camera
Image Sensor 1 MP CMOS image sensor
Signal System PAL/NTSC
Effective Pixels 1296(H) x 732(V)
Min. illumination 0.1 Lux@(F1.2,AGC ON),0 Lux with IR
Shutter Time 1/25 (1/30 )s to 1/50,000 s
Lens
2.8 mm, 3.6 mm, 6 mm optional
Field of view: 70.9° (3.6 mm), 92° (2.8 mm), 56.7° (6 mm)
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Synchronization Internal synchronization
Video Frame Rate 720p@25fps/720p@30fps
HD Video Output 1 analog HD output
S/N Ratio >62dB
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensing)
Power Supply 12 V DC±15%
Power Consumption Max. 4 W
Protection Level IP66
IR Range Up to 20 m
Dimensions Φ 70 mm x 154.5 mm ( 2.76" x 6.08")
Weight 300 g (0.66 lb.)

Order Model
DS-2CE16C0T-IRPF







153.6 mm (6.05")
6
0.
4

m
m

(
2
.
3
8"
)
Φ

5
5

m
m

(
2
.
1
7"
)
Φ

7
0

m
m

(
2
.
7
6"
)
3
-
Φ

4
.
2

m
m

(
0
.
1
7"
)


Dimensions

Accessories


DS-1280ZJ-XS DS-1H18 X41T
Junction Box Video Balun Camera Tester
