S5500-24GF4XF
DH-S5500-24GF4XF Product Overview The DH S5500 series switches are new-generation smart 1000M Ethernet switch products that provide high performance and high security. This series provides advanced hardware processing capabilities, diversified service features, large-capacity 1000M access ports, and high-density uplink capabilities, to meet requirements of users on high-density access and high-performance aggregation on campus networks. The DH S5500 series switches use pioneering energy-saving chips and innovative architecture design. This achieves minimum power consumption of the 1000M switches, and provides users with leading-edge green network access products that achieve environment-friendliness and energy saving. www.dahuasecurity.com DH-S5500-24GF4XF High-performance 1000M Ethernet Switches Features · High Scalability, Protecting Investments · IRF2 · Complete Security Control Policies · Diversified QoS Policies · High Availability · Environment Friendliness and Energy Saving Key Features · High Scalability, Protecting Investments The DH S5500 series switches have four fixed ports, which provide users with a cost-effective 10G uplink capabil...
Warranty: 36 mon.
Datasheet
Availability: 0
S5500-24GF4XF-E
Aggregation Switch | DH-S5500-24GF4XF-E www.dahuasecurity.com DH-S5500-24GF4XF-E System Overview DH-S5500-24GF4XF-E switch is a simple, cost-effective and easy-to-de- ploy layer 2+ access switching solution. It offers enhanced security, high- density GE and 10GE uplinks, static route, RIP, OSPF and IRF, flexible management, which meet the requirements of SME access, enterprise desktop access and high density campus access. Functions Intelligent Resilient Framework 2 (IRF2) IRF2 provides the following benefits: High scalability: Plug-n-play device aggregation can be achieved by add- ing one or more switches into the IRF2 stack and enabling IRF2 stacking on the new device. New devices can be managed with a single IP, and upgraded at the same time to reduce network expansion cost. High reliability: The IRF2 1:N backup technology allows each sub device in the IRF2 stack to serve as the backup of the main device, creating control and data link redundancy. Availability: DH-S5500-24GF4XF-E implements IRF2 through standard Gigabit Ethernet (1GE) ports or Ten Gigabit Ethernet (10GE) ports which allocates bandwidth for business and application access and reasonably splits local traff...
Warranty: 36 mon.
Datasheet
Availability: 0
S5500-48GT4GF-AC
www.dahuasecurity.com DH-S5500-48GT4GF-AC Aggregation Switch DH-S5500-48GT4GF-AC System Overview DH-S5500-48GT4GF-AC is the latest development of Gigabit speed managed Ethernet switch. Besides high performance access, it also offers abundant security access policy control and enhanced network manageability and maintenance. Functions High Performance DH-S5500-48GT4GF-AC all ports support wire speed forwarding, with four GE uplinks ports onboard. Virtualization technologies - IRF2 DH-S5500-48GT4GF-AC is pre-built with Intelligent Resilient Framework 2 (IRF2). IRF2 provides the following benefits: • High scalability: With IRF2, plug-n-play device aggregation can be achieved by adding one or more switches into the IRF2 stack and enabling IRF2 stacking on the new device. New devices can be managed with a single IP, and upgraded at the same time to reduce network expansion cost. • Load balancing: IRF2 supports cross-device link aggregation, upstream and downstream can be connected to more than one physical link, which creates another layer of network redundancy and boosts the network resource utilization. • Availability: DH-S5500-...
Warranty: 36 mon.
Datasheet
Availability: 0

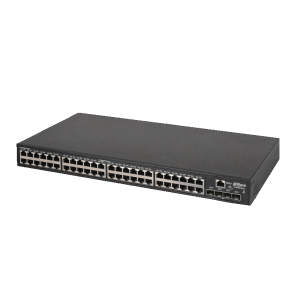

S5500-48GT4XF-E
Aggregation Switch | DH-S5500-48GT4XF-E www.dahuasecurity.com DH-S5500-48GT4XF-E System Overview DH-S5500-48GT4XF-E switch is a simple, cost-effective and easy-to-de- ploy layer 2+ access switching solution. It offers enhanced security, high- density GE and 10GE uplinks, static route, RIP, OSPF and IRF, flexible management, which meet the requirements of SME access, enterprise desktop access and high density campus access. Functions Intelligent Resilient Framework 2 (IRF2) IRF2 provides the following benefits: High scalability: Plug-n-play device aggregation can be achieved by add- ing one or more switches into the IRF2 stack and enabling IRF2 stacking on the new device. New devices can be managed with a single IP, and upgraded at the same time to reduce network expansion cost. High reliability: The IRF2 1:N backup technology allows each sub device in the IRF2 stack to serve as the backup of the main device, creating control and data link redundancy. Availability: DH-S5500-48GT4XF-E implements IRF2 through standard Gigabit Ethernet (1GE) ports or Ten Gigabit Ethernet (10GE) ports which allocates bandwidth for business and application access and reasonably splits local traff...
Warranty: 36 mon.
Datasheet
Availability: 0

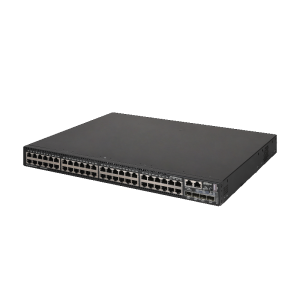

S5600-48GT4XF
www.dahuasecurity.com DH -S56 0 0 - 4 8G T4XF Aggregation Switch · Rich layer 3 features. · Reliable hardware design with modular dual power supply. · High-density 10/100/1000 Base-T autosensing Ethernet ports and 1G/10G SFP + fiber ports onboard · As an access device on enterprise networks, this switch can provide high-density GE connections for desktop applications. · DH-S5600-48GT4XF—Provides 48 x 10/100/1000 BASE-T ports and 4 x 1G/10 G BASE-X SFP+ ports. DH-S5600-48GT4XF System Overview DH-S5600-48GT4XF is robust (modular dual power), and easy to deploy Layer 3 access switching solution that offers enhanced security and 10GbE uplinks, BGP and Multicast, IRF enabled, flexible management. Functions Virtualization technologies - IRF2 DH-S5600-48GT4XF is pre-built with Intelligent Resilient Framework 2 (IRF2). IRF2 provides the following benefits: • High scalability: With IRF2, plug-n-play device aggregation can be achieved by adding one or more switches into the IRF2 stack and enabling IRF2 stacking on the new device. New devices can be managed with a single IP, and upgraded at the same time to reduce network expansion cost. • L...
Warranty: 36 mon.
Datasheet
Availability: 0

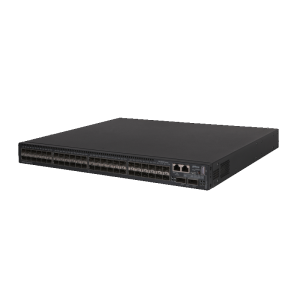

S6500-48XF2QF
www.dahuasecurity.com DH-S6500-48XF2QF · Rich layer 3 features · Reliable hardware design with modular dual power supply · Excellent manageability · High availability · High-density 10 Gigabit port System Overview DH-S6500-48XF2QF is a high-density 10 Gigabit switch for the next- generation core/aggregation products of Dahua. It provides large switching capacity, high-density 10GE/40GE wire-speed forwarding ports; supports pluggable dual power supply, fan and rich 3 layer features. Core Switch | DH-S6500-48XF2QF Functions Virtualization Technologies - IRF2 DH-S6500-48XF2QF is pre-built with Intelligent Resilient Framework 2 (IRF2). IRF2 provides the following benefits: High scalability: With IRF2, plug-n-play device aggregation can be achieved by adding one or more switches into the IRF2 stack and enabling IRF2 to stack on the new device. New devices can be managed with a single IP, and upgraded at the same time to reduce network expansion cost. Load balancing: IRF2 supports cross-device link aggregation, upstream and downstream can be connected to more than one physical link, which creates another layer of network redundancy and boosts the networ...
Warranty: 36 mon.
Datasheet
Availability: 0

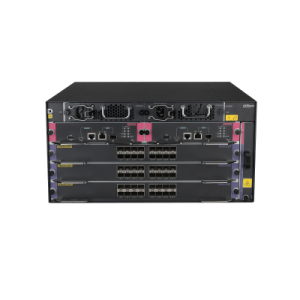

S7603
www.dahuasecurity.com DH-S7603 · Rich layer 3 features · Excellent manageability · Support Intelligent Resilient Framework · Comprehensive security control policies · Support hot swapping for all components · High-performance IPv4/IPv6 service capabilities · Hardware level encryption technology MACsec · Meets the need of different port density and performance requirements System Overview DH-S7603 is based on a large platform, and supports a variety of Ethernet interfaces, including 1000M optical interfaces, 1000M electrical interfaces, 10G optical interfaces, which meet multi-level link bandwidth requirements of users. Complying with Restriction of Hazardous Substances (RoHS), DH-S7603 is an environment-friendly routing switch. DH-S7603 supports main controller redundancy, and can be widely applied in multiple network environments, providing users with industry solutions that integrate security and switching components, wired components, and integrate active and passive components Core Switch | DH-S7603 Functions Virtualization Technologies - IRF2 IRF2 can virtualize up to four DH-S7603 into one logical IRF fabric. IRF2 delivers the following benefit...
Warranty: 36 mon.
Datasheet
Availability: 0

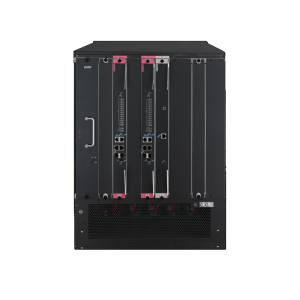

S8610
www.dahuasecurity.com DH-S8610 · High port density 10G line cards · Fully compliant with 40GE Ethernet standards · Support virtualization technologies · Hardware level encryption technology MACsec · High-performance IPv4/IPv6 service capabilities · Comprehensive security control policies · Support hot swapping for all components · Advanced CLOS multistage and multi-plane switching architecture, delivering great bandwidth scalability System Overview DH-S8610 product is a high-end multi-service routing switch for fusion business networks by Dahua. The product supports a virtualization software system based on IRF2 (Intelligent Resilient Framework 2, the second generation of intelligent elastic architecture) technology. It is fully compatible with 40GE Ethernet standards, and provides uninterrupted forwarding and upgrades, graceful restart, ring network protection and other high-reliability technologies. While improving production efficiency, it ensures the maximum network uptime, thereby reducing the total cost of ownership (TCO). Core Switch | DH-S8610 Functions Advanced System Architecture The system architecture incorporates the following advanced des...
Warranty: 36 mon.
Datasheet
Availability: 0
WM4700-O
www.dahuasecurity.com DH-WM4700 -O 4G Router · 4G transmission: High speed 4G LTE connection, 100 Mbps downlink and 50 Mbps uplink. · Wi-Fi transmission: Connect your smartphone, laptop and all other wireless devices to the 4G router through Wi-Fi for Internet access. · Security tunnel: VPN tunnel ensures the security of sensitive data, such as monitoring data and business data. · Industrial Design: Ensure long-term reliable operation in outdoor harsh environments. DH-WM4700-O System Overview The 4G Router is a type of IoT wireless router. It provides wireless and long-distance big data transmission for users by using public GPRS/ CDMA/WCDMA/EVDO/LTE network. Application The 4G Router is applicable to M2M industry in the IoT industrial chain, such as self-service terminal, smart grid, intelligent transportation, smart home, finance, industrial automation, intelligent building, firefighting, and public security. Technical Specification Software WAN Connection ModesStatic IP, DHCP, PPPOE and 4G VPN VPN client (PPTP, L2TP, IPSEC) VPN server (PPTP, L2TP, IPSEC) Wi-Fi 802.11b/g: Up to 54 Mbps 802.11n: Up to 150 Mbps
Warranty: 36 mon.
Datasheet
Availability: 0
