Transmission and power
DS-3E0508-E(B)
DS-3E0508-E(B) 8-Port Gigabit Unmanaged Ethernet Switch DS-3E0508-E(B) switch is a layer 2 Gigabit Ethernet switch, providing 8 x Gigabit Ethernet ports to upload data via the convergence switch. The switch is reliable, easy to install and maintain, and equipped with rapid switching functions. With multiple access ports, the switch is applicable for access or aggregation and upload of small-scale LAN devices. Feature and Function • 8 x Gigabit Ethernet ports. • IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard. • 1000 Mbps network access. • Wire-speed forwarding and non-blocking design. • Store-and-forward switching. • Solid high-strength metal shell. • Reliable fan-free design. Specification Model DS-3E0508-E(B) Network parameters Port number 8 x Gigabit Ethernet ports Port type RJ45 port, full duplex, MDI/MDI-X adaptive Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x Forwarding mode Store-and-forward switching MAC address table 4 K Switching capacity 16 Gbps Packet forwarding rate 11.904 Mpps Internal cache 1....
Warranty: 36 mon.
Datasheet
Availability: 1-5
DS-3E0516-E(B)
DS-3E0516-E(B) 16-Port Gigabit Unmanaged Ethernet Switch DS-3E0516-E(B) switch is a layer 2 Gigabit Ethernet switch, providing 16 x Gigabit Ethernet ports to upload data via the convergence switch. The switch is reliable, easy to install and maintain, and equipped with rapid switching functions. With multiple access ports, the switch is applicable for access or aggregation and upload of small- scale LAN devices. Feature and Function • 16 x Gigabit Ethernet ports. • IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard. • 1000 Mbps network access. • Wire-speed forwarding and non-blocking design. • Store-and-forward switching. • Solid high-strength metal shell. • Reliable fan-free design. Specification Model DS-3E0516-E(B) Network parameters Port number 16 x Gigabit Ethernet ports Port type RJ45 port, full duplex, MDI/MDI-X adaptive Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x Forwarding mode Store-and-forward switching MAC address table 8 K Switching capacity 32 Gbps Packet forwarding rate 23.808 Mpps Internal cache ...
Warranty: 36 mon.
Datasheet
Availability: 1-5
DS-3E0524TF
DS-3E0524TF Switch * Gigabit network data-exchange * 12 Gigabit Ethernet electrical ports and 12 Gigabit Ethernet SFP fiber optical port * 10/100/1000M BaseT (X)(RJ45 ports) * IEEE802.3, IEEE802.3u and IEEE802.3x network standards available * Store-and-forward switch * Delay of data-exchange less than 5us * Wide temperature Range: -5 ~ 50 ˚C * Solid metal chassis of high strength * 19 Inches 1U standards rack installation Features and Functions Introduction The Hikvision DS-3E0524TF Series Unmanaged Switch is layer 2 network switches, providing 12 Gigabit Ethernet electrical ports and 12 Gigabit SFP fiber optical port. It is reliable, easy to install and maintain, and equipped with rapid switch function. It has multiple access ports, and is applicable for access or aggregation and upload of small-scale LAN devices. It applies to center area and can access to camera and NVR, in charge of small-scale core data exchange. Applicable Models * DS-3E0524TF Model DS-3E0524TF Network parameters Port number 12 Gigabit Ethernet electrical ports and 12 ...
Warranty: 36 mon.
Datasheet
Availability: 1-5
DS-3E1318P-E
DS -3E 131 8 P - E Web-Managed PoE Switch • 802.3af/at PoE Standard • VLAN configurable, • STP, multicast, port mirroring, QoS, and SNMP • Extend mode: cable transmission distance up to 820 ft (250 m) • Guaranteed video data transmission due to buffer optimization The DS-3E1310P-E is a 10/100 Mbps web-managed switch that is designed for IP surveillance applications. Easily configured via a Web interface, users can setup VLANs, port mirroring, SNMP, and more. Or, they can just as easily use default settings, while still taking advantage of unique hardware features, such as outdoor power surge protection, optimized VIP ports, and extended power mode for longer cable runs to IP cameras. Hikvision we b -managed switches provide the right mix of features to help reduce the cost of installation and maintenance. Available Model: D S-3E 1 318 P-E (16 100M PoE electrical ports and 2 1000M COMBO ports) ...
Warranty: 36 mon.
Datasheet
Availability: 1-5
DS-3E1326P-E
DS -3E 1 326 P - E Web-Managed PoE Switch • 802.3af/at PoE Standard • VLAN configurable, • STP, multicast, port mirroring, QoS, and SNMP • Extend mode: cable transmission distance up to 820 ft (250 m) • Guaranteed video data transmission due to buffer optimization The DS-3E1326P-E is a 10/100 Mbps web-managed switch that is designed for IP surveillance applications. Easily configured via a Web interface, users can setup VLANs, port mirroring, SNMP, and more. Or, they can just as easily use default settings, while still taking advantage of unique hardware features, such as outdoor power surge protection, optimized VIP ports, and extended power mode for longer cable runs to IP cameras. Hikvision we b -managed switches provide the right mix of features to help reduce the cost of installation and maintenance. Available Model: D...
Warranty: 36 mon.
Datasheet
Availability: 1-5
GV-APOE0811-V2
GV-APOE0811-V2 May 27, 2024 - 1 - GV-APOE0811-V2 8-Port Gigabit 802.3at Web Management PoE Switch ⚫ 8-Port 10/100/1000BaseT(X) PoE+ with 2 SFP Uplink Ports ⚫ IEEE 802.3at compliant (8 ports at Full 15.4W) ⚫ VLAN, QoS, DSCP, RSTP, IGMP Snooping, Link Aggregation, LACP, Port Security, Bandwidth Control, Storm Control ⚫ Support for PD Alive Monitor ⚫ Support for ONVIF Discover ⚫ PoE connection for network cables up to 250 m (820 ft) at 10 Mbps ⚫ Max. 150 W power consumption ⚫ 19” Rack-mount ⚫ Up to 8 GV-IP Cameras support Introduction GV-APOE0811-V2 is an 8-Port 10/100/1000BaseT(X) PoE+ Web Smart PoE Switch with 2 SFP uplink ports. The switch supports IEEE 802.3at Power over Ethernet standard for a maximum power consumption of 150 W. It not only eliminates the need for power cables to connect your powered devices (PD), such as IP cameras, but it also allows power supply over network cables of up to 250 m (820 ft) in length, at 10 Mbps. Perfect for medium or large network environments to strengthen network connection and efficiency, the switch provides exceptionally smart Web management features, including VLAN, QoS, RSTP, IGMP Snooping, LACP, Port Security, an...
Warranty: 24 mon.
Datasheet
Availability: 1-5
GV-APOE1611
GV-APOE1611 June 16, 2020 - 1 - GV-APOE1611 16-Port Gigabit 802.3at Web Management PoE Switch 16‐ Port 10/100/1000BaseT(X) PoE+ with 2 SFP Uplink Ports IEEE 802.3at Compliant (16 Ports at Full 15.4 W) Web‐based Configuration and Management VLAN, QoS, DSCP, RSTP, IGMP Snooping, Link Aggregation, LACP, Port Security, Bandwidth Control, Storm Control Support for PD Alive Monitor Support for ONVIF Discover PoE connection for network cables up to 250 m (82...
Warranty: 24 mon.
Datasheet
Availability: 1-5
PFM321D-EN
Power Series | DH-PFM321D-EN/BS/US www.dahuasecurity.com DH-PFM321D-EN/BS/US 12V 1A Power Adapter Features * Easy installation * With indicator light working * Support -30℃~+70℃ wide-range temperature operation, and the full load efficiency of the power supply can be up to 100% at these temperatures * Accurate overcurrent, overvoltage protection Power Series | DH-PFM321D-EN/BS/US www.dahuasecurity.com Technical Specifications Model DH-PFM321D-EN DH-PFM321D-BS DH-PFM321D-US (VI) Electrical Specification Input 100~240V, 50/60Hz, 0.5A Output 12V (+7%, -3%) ---1A (±2%) Protection/Environmental Protection * Surge protection, over temperature protection, * over current, voltage load protection ESD: EN61000-4-2 ±4kV Contact; ±8kV Air Surge: EN61000-4-5” Combination Wave: Common Mode ±4KV (12 ohms); Differential Mode ±2kV (2 ohms) Working Temperature -30℃~+70℃(-22℉~+158℉) Working Humidity <95% RH Physical Properties Weight 150g(0.33lb) Dimension(Lxwxh) 84mmx41mmx26mm(3.31”x1.61”x1.02”) Installation Mode Pla...
Warranty: 36 mon.
Datasheet
Availability: 1-5
PFM809-4MP
HDCVI Accessory Series | PFM809-4MP www.dahuasecurity.com PFM809-4MP 16-Channel Passive HDCVI Balun Features * Power supply: No need additional power supply; * Transmission effect: Real-time transmission HDCVI video signal without compression, video is clear and stable; * Transmission distance: 0~400m (with passive transmitter); * Main functions: Use 4 wires meanwhile to transmit 16-ch video signal; * Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities; * Appearance structure: BNC coaxial interface, the green has screw terminal and crystal head twisted-pair cable interface. HDCVI Accessory Series | PFM809-4MP www.dahuasecurity.com Technical Specifications Model PFM809 Properties Transmission Signal 16-channel Transmission Distance HDCVI: 720P: max. 400m(1312.34ft) 1080P: max. 250m(820.21ft) 4MP: max. 200m(656.17ft) Category Type UTP CAT5E/6 Video Transmission Properties Coaxial Video Connector BNC Connection Way Spring loaded Compat...
Warranty: 36 mon.
Datasheet
Availability: 1-5
PFS3010-8GT-96-V2
www.dahuasecurity.com DH-PFS3010-8GT-96 10-Port Gigabit Unmanaged Desktop Switch with 8-Port PoE · Support eight 10/100/1000Mbps PoE Ethernet ports, and two 10/100/1000Mbps Ethernet ports · Operating Temperature: –10°C to + 55°C · PoE Power Requirement: 48V DC–57V DC Input Desktop PoE Switch | DH-PFS3010-8GT-96 System Overview The 8-port PoE gigabit switch is a gigabit access switch that supports scenarios with 1 to 8 IPC and is widely used in supermarkets, hospitals and stations.The 8-port PoE gigabit switch supports 8 gigabit PoE ports, 2 gigabit uplink Ethernet ports. The power consumption of full load is 96W. Scene Serve as the access switch in the security surveillance systems at supermarkets, hospitals and stations. Functions Various Ports Eight 10/100/1000 Mbps Base-TX PoE ports Two 10/100/1000 Mbps Base-TX uplink Ethernet ports Various Mount Type Support desk mount and wall mount. www.dahuasecurity.com Desktop PoE Switch | DH-PFS3010-8GT-96 Rev 001.001© 2020 Dahua. All rights reserved. Design and specifications are subject to...
Warranty: 36 mon.
Datasheet
Availability: 1-5
PFS3024-24GT
DH-PFS3024-24GT www.dahuasecurity.com Features · Layer 2 unmanaged access switch · All gigabit Ethernet ports · Lightning protection · Plug and play · Adopts metal enclosure · Good heat dissipation DH-PFS3024-24GT 24-Port Gigabit Switch (Unmanaged) Technical Specification Model DH-PFS3024-24GT Ethernet Port 24*10/100/1000 Base-T Switching Capacity 48G Packet Forwarding Rate35.7Mpps Packet Buffer Memory2Mb MAC Table Size8K Exchange ModeStore & forward Application Humidity10%~90% PowerAC: 100-240V; 50/60Hz Lightning Protection Common Mode 6KV Differential Mode 0.5KV Working Temperature0°C~+40°C Weight1.43kg Dimension(WxDxH)294mm x 178mm x 44mm...
Warranty: 36 mon.
Datasheet
Availability: 1-5
PFS3106-4ET-60-V2
DH-PFS3106-4ET-60 www.dahuasecurity.com Features · Layer two Hardened PoE switch · Supports PoE power management · MAC auto learning and aging, MAC address capacity is 8K · Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 supports Hi-PoE 60W power supply · Supports IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards · Wide working temperature design: -30°C~ 65°C · Supports dual power backup DH-PFS3106-4ET-60 4-Port PoE Switch (Unmanaged) Technical Specification ModelDH-PFS3106-4ET-60 Ethernet Port 1*100/1000 Base-X 1*10/100/1000 Base-T 4*10/100 Base-T (PoE power supply) PoE Power ConsumptionPort1≤60W, Port2-4≤30W, Total≤60W PoE PIN Assignment1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) PoE Power ManagementSupport PoE ProtocolIEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE Switching Capacity6.8G Packet Forwarding Rate3.57Mpps Packet Buffer Memory1Mb MAC Table Size8K Flow ControlEnable by default Application Humidity5%~95% PowerDC 48~57V power adapter Lightning Protection Common Mode 6KV Differential Mode 4KV ESD Protection Air Discharge 15KV Contact Discharge 8KV Working Temperature-30°C~65°C Weight4...
Warranty: 36 mon.
Datasheet
Availability: 1-5
PFS3110-8ET-96
DH-PFS3110-8ET-96 www.dahuasecurity.com Features · Layer two Hardened PoE switch · Supports PoE power management · MAC auto learning and aging, MAC address capacity is 8K · Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 supports Hi-PoE 60W power supply · Supports IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards · Wide working temperature design: -30°C~ 65°C · Supports dual power backup DH-PFS3110-8ET-96 8-Port PoE Switch (Unmanaged) Technical Specification ModelDH-PFS3110-8ET-96 Ethernet Port 1*1000 Base-X 1*10/100/1000 Base-T 8*10/100 Base-T (PoE power supply) PoE Power ConsumptionPort1-2≤60W, Port3-8≤30W, Total≤96W PoE PIN Assignment1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) PoE Power ManagementSupport PoE ProtocolIEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE Switching Capacity7.6G Packet Forwarding Rate4.17Mpps Packet Buffer Memory1Mb MAC Table Size8K Flow ControlEnable by default Application Humidity5%~95% PowerDC 48~57V power adapter Lightning Protection Common Mode 6KV Differential Mode 4KV ESD Protection Air Discharge 15KV Contact Discharge 8KV Working Temperature-30°C~65°C Weight54...
Warranty: 36 mon.
Datasheet
Availability: 1-5

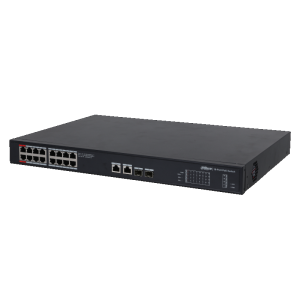

PFS3220-16GT-240
www.dahuasecurity.com DH-PFS3220-16GT-240 · Intelligent PoE · Red Port Supports BT 90W · All-giga Ports · Smooth Transmission · Wide Working Temperature: –10 to 55°C (14°F to 131°F) · Plug and Play All-giga PoE Switch | DH-PFS3220-16GT-240 System Overview DH-PFS3220-16GT-240 is an unmanaged PoE switch with red port supporting IEEE802.3bt standard. It supports maximum 90W power supply and power consumption management strategy to ensure the stable operation under extreme circumstances. Gigabit accesses support high definition. Gigabit uplink optical fiber supports long distance transmission. Scene Applicable to small and micro-scale monitoring networks such as office desktops, schools, hotels, supermarkets, hospitals. Technical Specification Certification Layer Layer 2 ManagedNo Switching Capacity52 Gbps Packet Forwarding Rate29.76 Mpps Packet Buffer Memory 4 Mbit MAC Table Size8K Standards Compliance IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z Hardware Feature Standard Power SupplyYes PoEYes Ethernet Port16 Optical Port2 Ethernet Port Rate1 Gbps Optical Port Rate1 Gbps Number of Bus...
Warranty: 36 mon.
Datasheet
Availability: 1-5

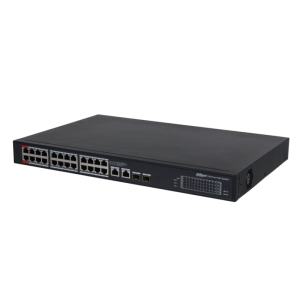

PFS3228-24GT-360
www.dahuasecurity.com DH-PFS3228-24GT-360 · Intelligent PoE · Red Port Supports BT 90W · All-giga Ports · Smooth Transmission · Wide Working Temperature: –10°C to 55°C (14°F to 131°F) · Plug and Play All-giga PoE Switch | DH-PFS3228-24GT-360 System Overview DH-PFS3228-24GT-360 is an unmanaged PoE switch with red port supporting IEEE802.3bt standard. It supports maximum 90W power supply and power consumption management strategy to ensure the stable operation under extreme circumstances. Gigabit accesses support high definition. Gigabit uplink optical fiber supports long distance transmission. Scene Applicable to small and micro-scale monitoring networks such as office desktops, schools, hotels, supermarkets, hospitals. Technical Specification Certification Layer Layer 2 ManagedNo Switching Capacity52 Gbps Packet Forwarding Rate38.688 Mpps Packet Buffer Memory 4 Mbit MAC Table Size8K Standards Compliance IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z Hardware Feature Standard Power SupplyYes PoEYes Ethernet Port24 Optical Port2 Ethernet Port Rate1 Gbps Optical Port Rate1 Gbps Number of ...
Warranty: 36 mon.
Datasheet
Availability: 1-5
PFS4206-4P-120
DH-PFS4206-4P-120 www.dahuasecurity.com Features· Two-layer managed PoE switch · MAC auto study and aging, MAC address list capacity is 8K S AMA · Support IEEE802.3af, IEEE802.3at, Hi-PoE standard · Industrial wide temperature design · PoE Management DH-PFS4206-4P-120 4-Port PoE Managed Switch T S ModelDH-PFS4206-4P-120 Ethernet Port 2*1000 Base-X(SFP) 1*10/100/1000 Base-T(Hi-PoE/PoE+/PoE) 3*10/100 Base-T (PoE+/PoE) PoE Power Consumption P A W P A W TA W PoE ProtocolPoE(802.3af), PoE+(802.3at), Hi-PoE Switching Capacity6.8Gbps Packet Forwarding Rate4.91Mpps Packet Buffer Memory1Mb Application Humidity10%~90% PowerDC V L P C M KV D M KV W T C C W480g D WADAH A A S C System Username / password: admin/(empty) IP Address :192.168.1.110/24 PoE Budget W MAC Table Size8K VLAN Q S VLAN Port MirroringSupport many-to-one port mirroring Flow Control Support half-duplex based on back pressure type control Support full duplex based on PAUSE frame Network Management WEB SNMP V V C Ring Network S <=50ms Support Spanning Tree, STP/...
Warranty: 36 mon.
Datasheet
Availability: 1-5
PFT3950
MULTI-MODE MODULE Optical modules complying with SFP (Small Form-factor Pluggable) standard are devices converting electrical signal to the optical form and optical signal to the electrical form. Usage media converters with the ability to exchange SFP modules is particularly preferred because of its versatility, for example if you change the network confguration rather than replace the entire unit or add new media converters simply select the appropriate SFP module. Modules complying with most of switches and routers with SFP socket. SPECIFICATION Transmission protocols : IEEE 802.3u 100Base-FX Fiber type : Multi-mode fber Maximal transmission range : 0.5 km Transfer rate : max. 1.25 Gb/s Number of used fbers : 2 Optical connectors : 2 x LC Light source / optica...
Warranty: 36 mon.
Datasheet
Availability: 1-5
PFT3970
Transmission - Accessory | SFP Modules us.dahuasecurity.com •Single-mode and Multi-mode LC Connectors •Maximum Transmission Distance of 20 km (12.43 miles) •Maximum Data Rate of 1.25 Gbps •Wide Operating Temperature Range: –40°C to 85°C (–40°F to 185°F) SFP Fiber Modules For Use with Network PoE Switches Technical Specification Model NumberData InterfaceData RateConnectorWavelengthMaximum Distance PFT3900 Ethernet 155 Mbps Multi-mode LC Transmit: 850 nm Receive: 850 nm 2 km (1.24 miles) PFT3910 Ethernet 155 Mbps ...
Warranty: 36 mon.
Datasheet
Availability: 1-5
