DS-1H18
DS-1H18 Series TVI Transmission Overview DS-1H18 is a passive high definition transmitter, small size and easy installation, transmission distance of color signal up to 200m, it is very suitable for middle distance video surveillance, such as office building, community, school and hospital etc. Available Models DS-1H18 Product Terminal and Dimension Introduction (1): VIDEO IN (2): VIDEO +(UTP Cable) (3): VIDEO - (UTP Cable) Product Installation Instructions ◆ Connect the video signal to BNC terminal of transmitter. ◆ Selected a pair of UTP Cable (must be same color) connect to the transmitter VIDEO +/- port and receiver VIDEO +/- port ◆ Connect the video signal of receiver to display device. Specifications Bandwidth DC0 to 60MHz Impedance 75Ω to 100Ω Differential Gain < 2% Differential Phase < 2° Connectors BNC to Spring compression wire terminals Temperature Operating: -25° to 70° C Humidity < 95%...
Warranty: 36 mon.
Datasheet
Availability: 11-50
DS-1LN6-UU
HIKVISION TECHNICAL DATA SHEET Form Edition：A/1 1 of 1 Effective Date of Form：2012-12-27 U/UTP 4Pairs cable-category 6- PVC Sheath P/N: HK-1191-C6-001-01 Content of the Data Sheet Sheath Printing HIKVISION E484059-Z (UL) CM 4PR 23AWG 75℃ U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Customer Reference Category U/UTP CAT6-4P-PVC-CM Test Standard ISO/IEC11801、TIA-568-C.2 、YD/T1019 Conductor Material SOLID-Bare Copper Nom.O.D.(mm) 0.565 up +0.005 down -0.005 Insulation Material HDPE Diameter 1.02±0.03mm Sheath Thickness 0.55±0.05 mm Technical Performance (100m): Frequency RL ATT(20℃) NEXT PHASE DELAY (MHz) ≥dB ≤dB ≥dB ≤ns 1 20.0 2.03 74.3 570.00 4.0 23.0 3.78 65.3 552.00 8.0 24.5 5.32 60.8 546.73 10.0 25.0 5.95 59.3 545.38 16.0 25.0 7.55 56.2 543.00 20.0 25.0 8.47 54.8 542.05 25.0 24.3 9.51 53.3 5...
Warranty: 36 mon.
Datasheet
Availability: 501-1000
DS-3E0310HP-E
DS-3E0310HP-E 8-Port 100 Mbps Long-Range PoE Switch Feature and Function • 1 x 10/100 Mbps HiPoE port, 7 x 10/100 Mbps PoE ports, and 2 x 10/100/1000 Mbps RJ45 ports. • IEEE 802.3at/af/bt standard for HiPoE port (Max. 60 W port power). • IEEE 802.3at/af for PoE ports. • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z. • PoE port with 6 KV surge protection. • AF/AT camera can reach up to 250 m in extend mode. HiPoE camera can reach up to 150 m. • PoE output power management. • Dual uplink network design. • Wire-speed forwarding and non-blocking design. • Store-and-forward switching. • Solid high-strength metal shell. • Fan-free design with high reliability. DS-3E0310HP-E switches are layer 2 100 Mbps long-range PoE switches, providing 1 x 10/100 Mbps HiPoE port, 7 x 10/100 Mbps PoE ports, and 2 x 10/100/1000 Mbps RJ45 ports. The switches provide advanced HiPoE/PoE technology and supports extend mode with long-range access up to 250 m. Meanwhile, the 2 x 10/100/1000 Mbps RJ45 uplink ports guarantee applications of multiple network solutions. Specification Model DS-3E0310HP-E...
Warranty: 36 mon.
Datasheet
Availability: 11-50
DS-3E0505HP-E
DS-3E0505HP-E 5-Port Gigabit Unmanaged Hi-PoE Switch Key Feature • 3 x gigabit PoE ports, 1 x gigabit Hi-PoE port and 1 x gigabit RJ45 port. • IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W PoE output). • IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output). • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab standard. • 6 KV surge protection for PoE ports. • Up to 300 m long-range transmission. • PoE watchdog to auto detect and restart the cameras that do not respond. • Port isolation to improve network security. • Gigabit network access design. • Wire-speed forwarding. • Store-and-forward switching. • Solid high-strength metal shell. • Reliable fan-free design. DS-3E0505HP-E switches are layer 2 Hi-PoE switches, providing advanced PoE power supply technology and Gigabit networks design on the basis of high- performance access to ensure stable data upload. The switches support Hi-PoE, long range, port isolation, and PoE watchdog function. Specification Model DS-3E0505HP-E Network parameters Port number 3 x gigabit PoE ports, 1 x gigabit Hi-PoE ...
Warranty: 36 mon.
Datasheet
Availability: 501-1000
DS-3E0510P-E/M
DS-3E0510P-E 8-Port Gigabit Unmanaged PoE Switch DS-3E0510P-E switches are layer 2 gigabit PoE unmanaged switches, providing 8 gigabit PoE ports, one 10/100/1000 Mbps RJ45 port, and one 10/100/1000 Mbps SFP fiber optical port. The switches provide advanced PoE technology and connect other devices with high performance. Meanwhile, all gigabit ports guarantee stable transmission of data. Feature and Function • 8 x gigabit PoE ports, 1 x gigabit RJ45 port, and 1 x gigabit SFP fiber optical port. • IEEE 802.3at/af standard. • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard. • PoE port with 6 KV surge protection. • PoE output power management. • Gigabit network access. • Wire-speed forwarding and non-blocking design. • Store-and-forward switching. • Solid high-strength metal shell. • Fan-free design with high reliability. Specification Model DS-3E0510P-E Network parameters Port number 8 x gigabit PoE ports, 1 x gigabit RJ45 port, and 1 x gigabit SFP fiber optical port Port type RJ45 port, full duplex, MDI/MDI-X a...
Warranty: 36 mon.
Datasheet
Availability: 11-50
DS-3E1105P-EI
DS-3E1105P-EI Smart Managed 4-Port 100 Mbps PoE Switch Key Feature • 4 x 100 Mbps PoE RJ45 ports, 1 x 100 Mbps network RJ45 port. • IEEE 802.3at/af standard for PoE ports. • Network topology management, alarm push, network health monitor. • 6 KV surge protection for PoE ports. • AF/AT camera can reach up to 300 m in extend mode. Smart managed switches are developed by Hikvision, featuring in easy management and maintenance. You can easily deploy, monitor and expand your surveillance system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance. Visualized Topology Management Network Health Monitor Real-Time Alarm Push Video Control and Preview Specification Model DS-3E1105P-EI Network parameters Port number 4 x 100 Mbps PoE RJ45 ports, and 1 x 100 Mbps network RJ45 port. Port type RJ45 port, full duplex, MDI/MDI-X adaptive Standard IEEE 802.3, IEE...
Warranty: 36 mon.
Datasheet
Availability: 501-1000
DS-3E1309P-EI
DS-3E1309P-EI Smart Managed 8-Port 100 Mbps PoE Switch Key Feature • 8 x 100 Mbps PoE RJ45 ports, 1 x gigabit network RJ45 port. • IEEE 802.3at/af standard for PoE ports. • Network topology management, alarm push, network health monitor. • 6 KV surge protection for PoE ports. • Up to 300 m long-range transmission. • AF/AT camera can reach up to 300 m in extend mode. Smart managed switches are developed by Hikvision, featuring in easy management and maintenance. You can easily deploy, monitor and expand your surveillance system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance. Visualized Topology Management Network Health Monitor Real-Time Alarm Push Video Control and Preview Specification Model DS-3E1309P-EI Network parameters Port number 8 x 100 Mbps PoE RJ45 ports, and 1 x gigabit network RJ45 port. Port type RJ45 port, full duplex, MDI/MDI-X adapt...
Warranty: 36 mon.
Datasheet
Availability: 501-1000
DS-3E1318P-EI
DS-3E1318P-EI Smart Managed 16-Port 100 Mbps PoE Switch Key Feature • 16 x 100 Mbps PoE RJ45 ports, 2 x gigabit combos. • IEEE 802.3at/af standard for PoE ports. • Network topology management, alarm push, network health monitor. • 6 KV surge protection for PoE ports. • AF/AT camera can reach up to 300 m in extend mode. Smart managed switches are developed by Hikvision, featuring in easy management and maintenance. You can easily deploy, monitor and expand your surveillance system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance. Visualized Topology Management Network Health Monitor Real-Time Alarm Push Video Control and Preview Specification Model DS-3E1318P-EI Network parameters Port number 16 x 100 Mbps PoE RJ45 ports, and 2 x gigabit combos. Port type RJ45 port, full duplex, MDI/MDI-X adaptive Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab and IE...
Warranty: 36 mon.
Datasheet
Availability: 501-1000
GV-APOE0810-V2
GV-APOE0810-V2 May 21, 2021 - 1 - GV-APOE0810-V2 10-Port 10/100/1000M Unmanaged PoE Switch with 8-Port PoE 10‐ port 10/100/1000BaseT(X), 8 ‐ port with Power over Ethernet IEEE 802.3at Compliant (8 Ports at Full 15.4 W / 4 Ports at Full 30 W) Max. 125 W power consumption VLAN mode for network partition and enhanced performance Support for PD Alive Check PoE connection for network cables up to 250 m (820 ft) at 10 Mbps transfer rate ...
Warranty: 24 mon.
Datasheet
Availability: 501-1000
GV-APOE1611-V2
GV-APOE1611 July 27, 2021 - 1 - GV- APOE 16 1 1- V2 16-Port Gigabit Web Management PoE Switch 16-Port 10/100/1000BaseT ( X ) PoE+ with 2 SFP Uplink Ports and 2 Combo Uplink Ports IEEE 802.3at Compliant (16 Ports at Full 15.4 W) Web-based Configuration and Management VLAN, QoS, DSCP, RSTP, IGMP Snooping, Link Aggregation, LACP, Port Security, Bandwidth Control, Storm Control PD Alive Monitor ONVIF Discover PoE Schedule PoE connection for network cables up to 250 m (820 ft) at 10 Mbps transfer rate Max. 280 W power consumption 19” Rack -mount Up to 16 GV-IP Cameras support Introduction GV-APOE1611 - V2 is a 16 -Port 10/100/1000BaseT(X) PoE+ Web Smart PoE Switch with 2 SFP uplink ports and 2 Combo uplink ports . The switch supports IEEE 802.3at Power over Ethernet standard for a maximum power consumption of ...
Warranty: 24 mon.
Datasheet
Availability: 11-50
GV-GVS2100
GV-GVS2100 April 15, 2024 -1- GV-GVS2100 1CH H.265 Combo 5MP Video Server • AI deep learning: AI Perimeter Protection & Classification (Human & Vehicle) • Triple streams from H.265, H.264 and MJPEG • Up to 20 fps at 2592 x 1944 • Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage • Two-way audio capable • 8 sensor inputs and 4 alarm outputs • DC 12V / PoE (IEEE 802.3af) • TVI / AHD / CVI / CVBS • Motion detection • AI analytics (Object Abandoned/Missing, Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting, Face Detection, Heat Map) • Privacy mask • Text overlay • IP address filtering • Tampering Alarm • Support UTC (Up-The-Coax) control • 12 languages supported • ONVIF (Profile G, S, T) conformant Introduction GV-GVS2100 is a powerful H.265 Video Server with compact size and supports TVI / AHD / CVI / CVBS analog real-time video. It converts analog signals into high-resolution digitalized images of up to 5 megapixels. It can record videos to the inserted micro SD card, performing as a compact video recorder. Empowere...
Warranty: 24 mon.
Datasheet
Availability: 11-50
GV-PA482
GV-PA482 August 26, 2016 - 1 - GV-PA482 High Power PoE Adapter (PoE++) Introduction The GV ‐PA482 is a Power over Ethernet (PoE) adapter designed to provide power to the IP camera through a single Ethernet cable. Adopting the PoE adapter enables you to mount an IP camera anywhere in a building where power outlets are not available. Specifications PoE Standard High Power Over Ethernet (PoE++) / PSE PoE Output (10 / ...
Warranty: 36 mon.
Datasheet
Availability: 11-50
PFM300
Power Series | DH-PFM300 www.dahuasecurity.com DH-PFM300 DC12V2A Power Adapter Features * Easy installation and wall mount, structural water-proof; * Support -30℃~+70℃ wide-range temperature operation, and the full load efficiency of the power supply can be up to 100% at these temperatures; * With junction function for camera wiring or can place video balun with HDCVI/AHD/TVI/CVBS cameras; * Made of PC environmental protection material, which meets “V0” fire protection; * Accurate over current, voltage load protection. Power Series | DH-PFM300 www.dahuasecurity.com Technical Specifications Model DH-PFM300 Electrical Specification Rated input AC180~264V, 50/60Hz, 0.6A Efficiency 82% no-load power consumption <0.5W Output voltage DC12V (±5%) Output current 2A (±2%) Protection/Environmental Protection * Accurate over current, voltage load protection “V0” fire protection Working temperature -30℃~+70℃(-22℉~+158℉) Working humidity <90% RH Physical Properties Weight 160g(0.35lb) Dimension(LxWxH) 88mmx37mmx138mm...
Warranty: 36 mon.
Datasheet
Availability: 501-1000
PFM700-E
Video Extender Series | PFM700-E www.dahuasecurity.com PFM700-E HDMI Extender Features * Power supply: Input voltage DC5V, only supply for transmitter. * Transmission effect: Real-time transmission HDMI video signal, no delay, strong anti-interference. * Transmission distance: HDMI transmission distance 60m (max.196.85ft). * Infrared function: support to transmit one-way infrared remote control signal. * Main functions: Use single UTP (CAT-5E and CAT-6) to transmit 1-ch HDMI video signal, support HDMI 1.3; Support HDMI local loop output; Support EDID. * Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities. * Appearance structure: No need to install driver program and set network parameters, easy to use and convenient to install. Video Extender Series | PFM700-E www.dahuasecurity.com Technical Specifications Model PFM700-E Properties Transmission Signal 1channel HDMI Transmission Distance 60m(max)(196.85ft) Video Transmission Properties Video Signal Input Interface HDMI interface Vi...
Warranty: 36 mon.
Datasheet
Availability: 11-50
PFM923I-6UN-C
Cable Series | DH-PFM923I-6UN-C www.dahuasecurity.com DH-PFM923I-6UN-C 305m UTP CAT6 LSZH Cable Features * 305m UTP CAT6; * Support PoE long-distance transmission; * Excellent OFC with 99.97% OFC (oxygen free copper) purity; * Environmentally-friendly LSZH outer sheath, meet the CPR E class; * Top-notch quality guarantee for 10 years. Cable Series | DH-PFM923I-6UN-C www.dahuasecurity.com Technical Specifications Model DH-PFM923I-6UN-C Structure Conductor Material OFC(oxygen free copper) Structure 4P*0.53±0.01mm Insulation Material HDPE Min. average thickness 0.21mm Diameter 0.95mm±0.05mm Color(4 Pairs) White/Blue, Blue; White/Orange, Orange; White/Green, Green; White/Brown, Brown Rip Cord Yes Jacket Material LSZH, meet the requirement of CPR E class Min. average thickness 0.43mm Diameter 6.0±0.5mm surface Smooth, full and tight Color White General Length 305m(1000.66ft) Packaging dimension 412mmx412mmx215mm (16.22”x16.22”x8.46”) Weight (with packaging) 12.5kg(27.56lb...
Warranty: 36 mon.
Datasheet
Availability: 501-1000
PFS3005-4ET-60-V2
DH-PFS3005-4ET-60 Product Overview DH-PFS3005-4ET-60 is a layer two fast ethernet switch, which supports 250 meters long distance PoE transmission. It provides 4*10/100Mbps PoE ports and 1*100 Mbps uplink ports. In order to acquire smooth monitoring, it’s recommended to connect max 4 IP cameras at a bit rate of less than 4Mbps respectively. www.dahuasecurity.com Features · Layer two commercial switch · Supports PoE power management · Supports wall-mount installation · Supports anti-theft lock hole · MAC auto learning and aging, MAC address capacity is 1K · Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards · RJ45 port supports 10/100Mbps self-adaptation · Supports 250 meters long distance PoE transmission · Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 supports Hi-PoE 60W power supply DH-PFS3005-4ET-60 4-Port PoE Switch (Unmanaged) Technical Specification ModelDH-PFS3005-4ET-60 Ethernet Port 1*10/100 Base-T 4*10/100 Base-T (PoE power supply) PoE Power ConsumptionPort1≤60W, Port2-4≤30W, Total≤60W PoE PIN Assignment1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) PoE Power ManagementSupport PoE ProtocolIEEE802.3af (PoE), IEEE802.3at (PoE...
Warranty: 36 mon.
Datasheet
Availability: 11-50
PFS3006-4GT-60-V2
www.dahuasecurity.com DH-PFS3006-4GT-60 6-Port Unmanaged Desktop Gigabit Switch with 4-Port PoE · Layer 2 commercial switch · Supports IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3x standards · MAC auto study and aging, MAC table size is 2K · MDI/MDIX self-adaption · Adopts metal enclosure · Port 1 supports Hi-PoE 60W power supply · Wall-mount installation · Anti-theft lock hole DH-PFS3006-4GT-60 Functions Intelligent PoE Adopt PoE power consumption management strategy, and supply power to important ports first. When total power consumption exceeds the set threshold value of the system, power down the ports from large port number to small port number. Adopt smart detection to prevent outage. Supply power with ultra-wide power range, and adapt to IPC power consumption fluctuations in severe environment. Eight-PIN Assignment PoE Power Supply The Eight-PIN Ethernet port supports power supply, to enhance front- end and rear-end compatibility. Reduce cable loss and promote loading capacity. Easy Installation Support desktop and wall mounting. The anti-theft lock hole supports mechanical anti-theft function. Wide Working Temperature With operating tempe...
Warranty: 36 mon.
Datasheet
Availability: 501-1000

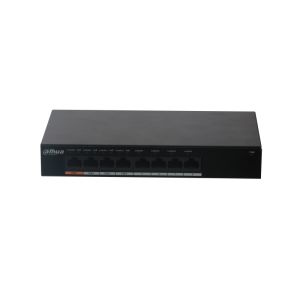

PFS3008-8GT-L
www.dahuasecurity.com DH-PFS3008-8GT-L 8-Port Desktop Gigabit Ethernet Switch DH-PFS3008-8GT-L System Overview 8 x 10/100/1000 Mbps adaptive ports, highly integrated design, compact, portable, easy to operate, suitable for small and medium office and home networks. Application The product is applicable to small and medium office and home networks. Technical Specification Performance LayerLayer 2 ManagedNo Hardware Standard Power SupplyYes PoENo Ethernet Port8 Ethernet Port Rate1 Gbps Power Supply5V/1A DC Operating Temperature-10°C to 55°C (14°F to 131°F) Operating Humidity10%–90% Storage Temperature-40°C to 70°C (-40°F to 158°F) Storage Humidity10%–90% Power Consumption Idling: 0.81W Full load: 4W Performance Switching Capacity16 Gbps Packet Forwarding Rate11.9 Mpps Packet Buffer Memory1.5 Mbits MAC Table Size2K Standards Compliance IEEE 802.3i, IEEE 802.3u, IEEE802.3ab, IEEE802.3x General ESD Air discharge: 8kV Contact discharge: 4kV ThunderproofCommon mode: 2kV Net Weight0.11 kg (0.2...
Warranty: 36 mon.
Datasheet
Availability: 11-50
